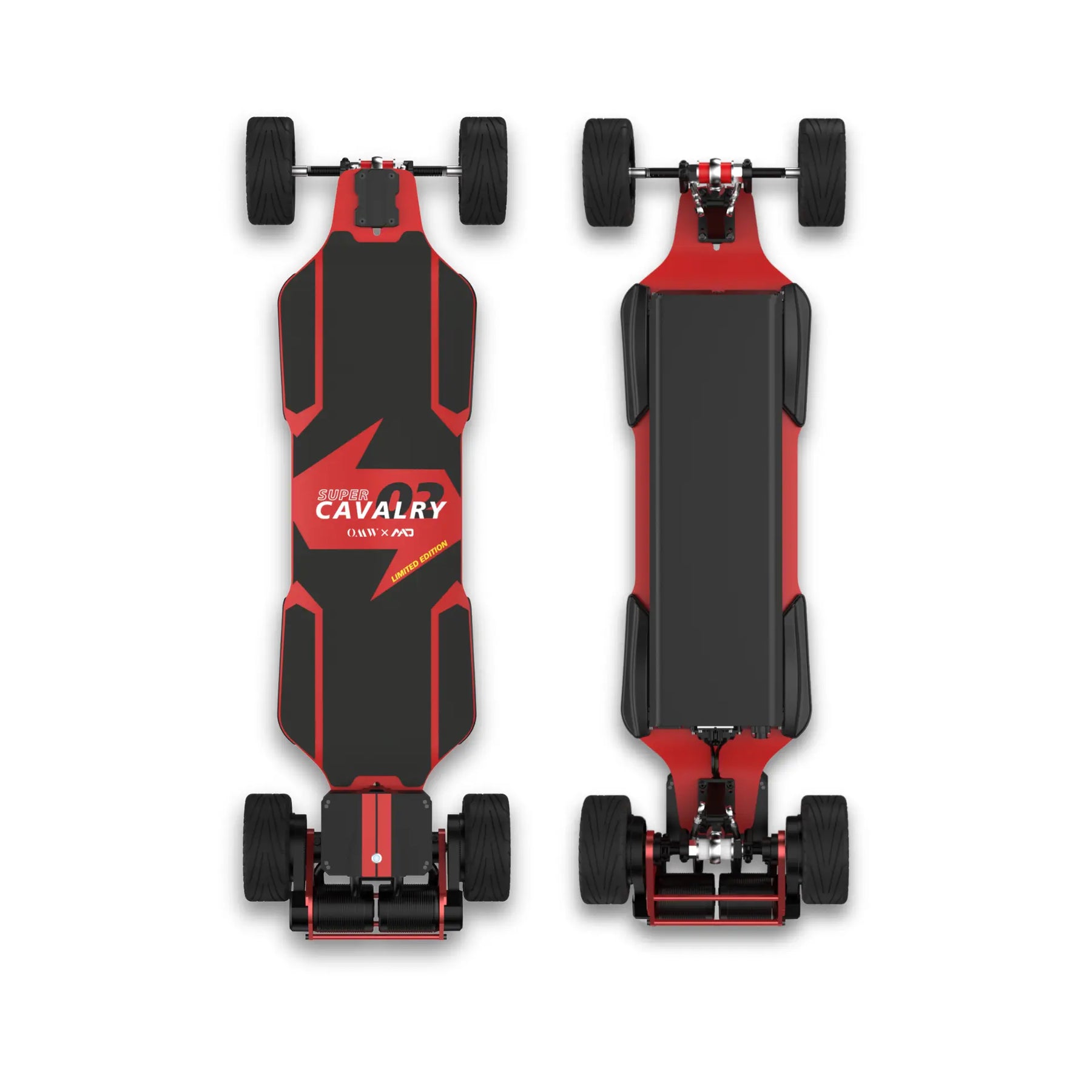

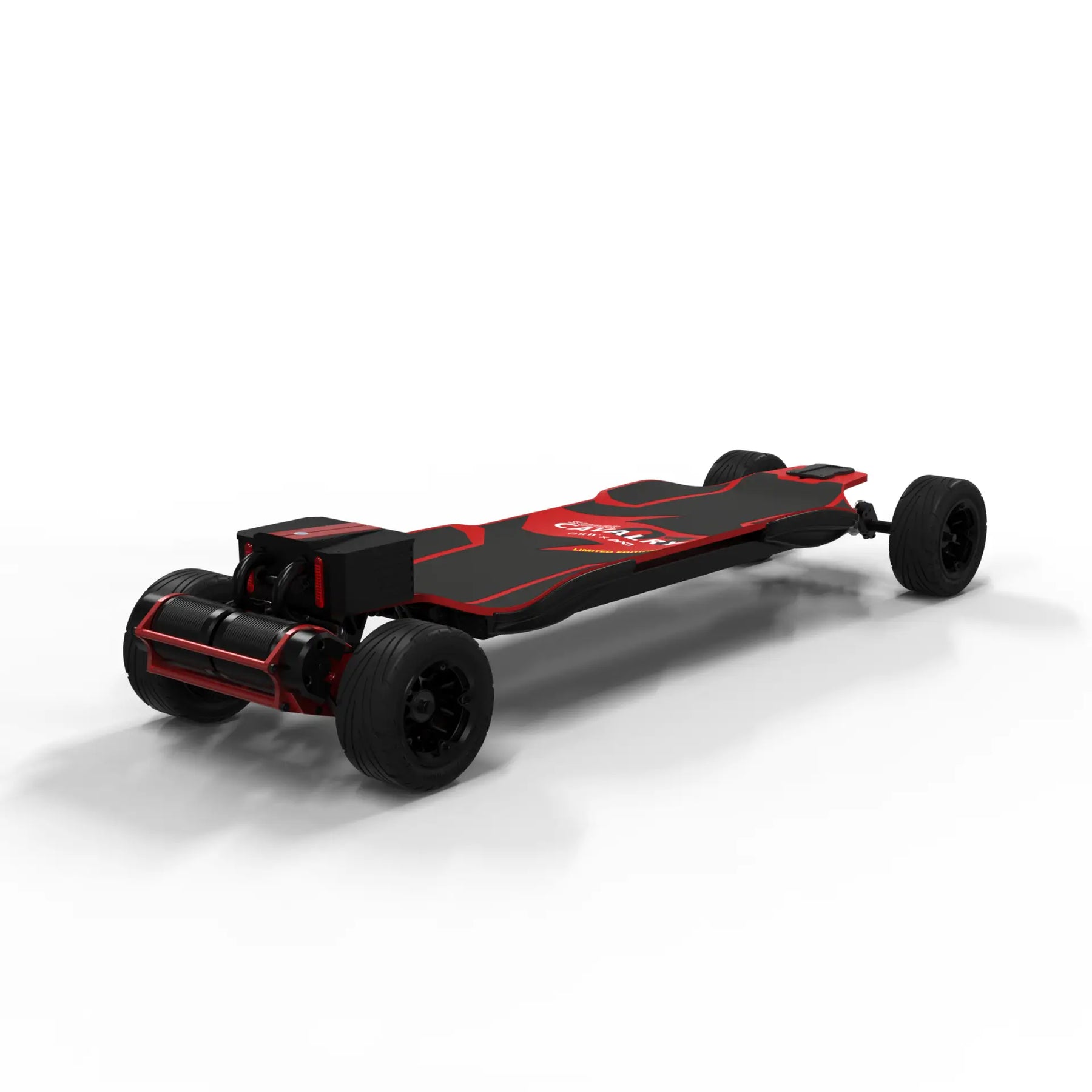

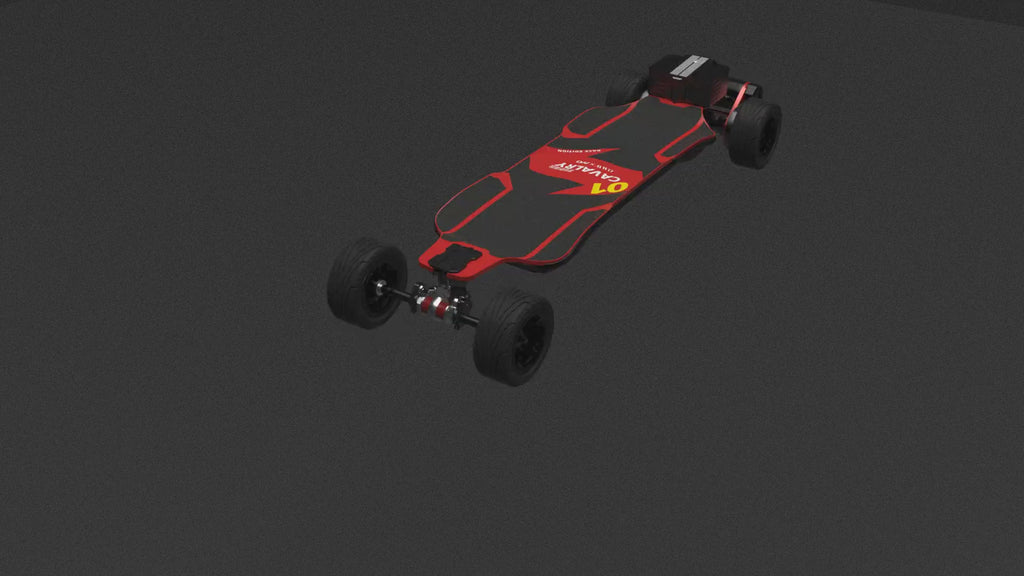

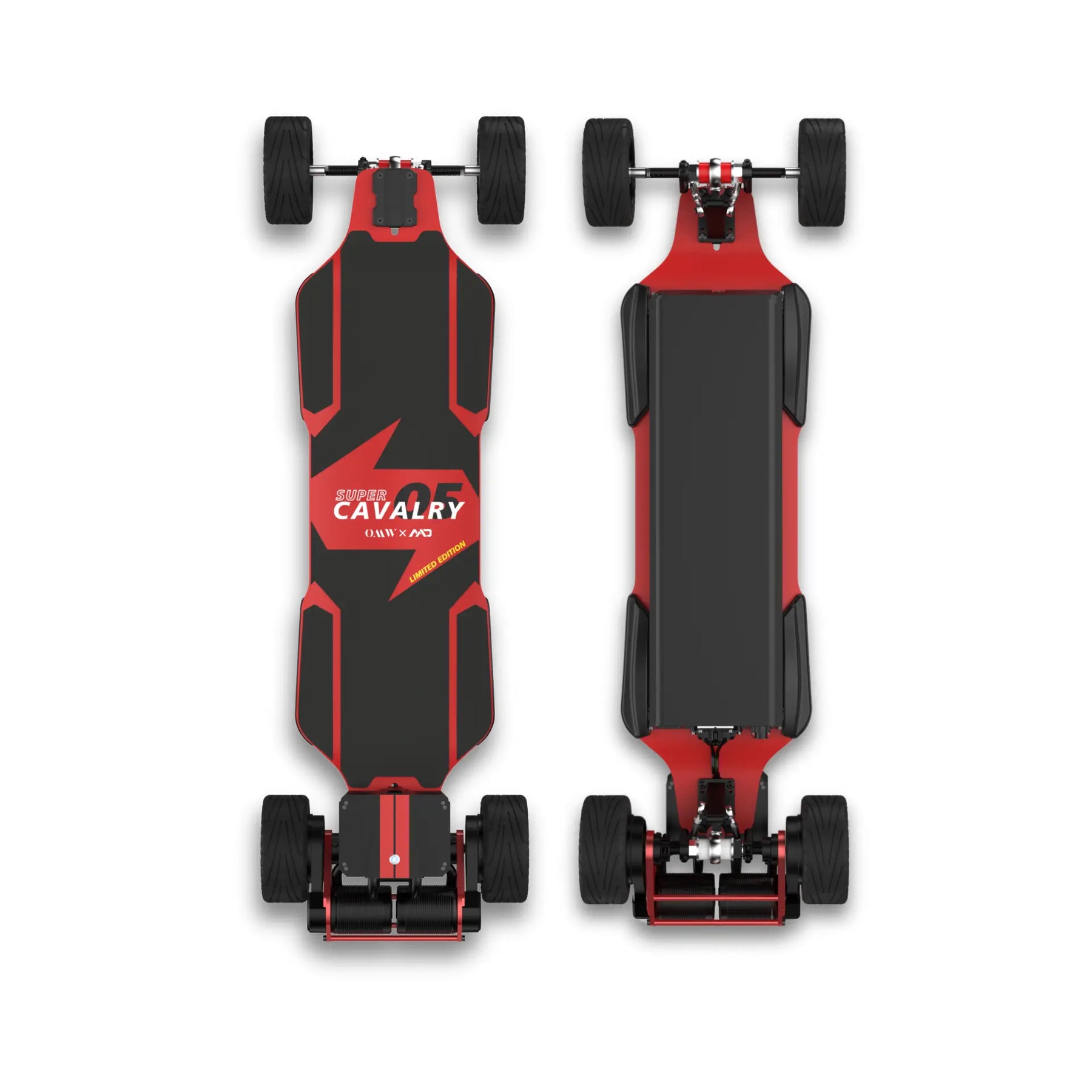

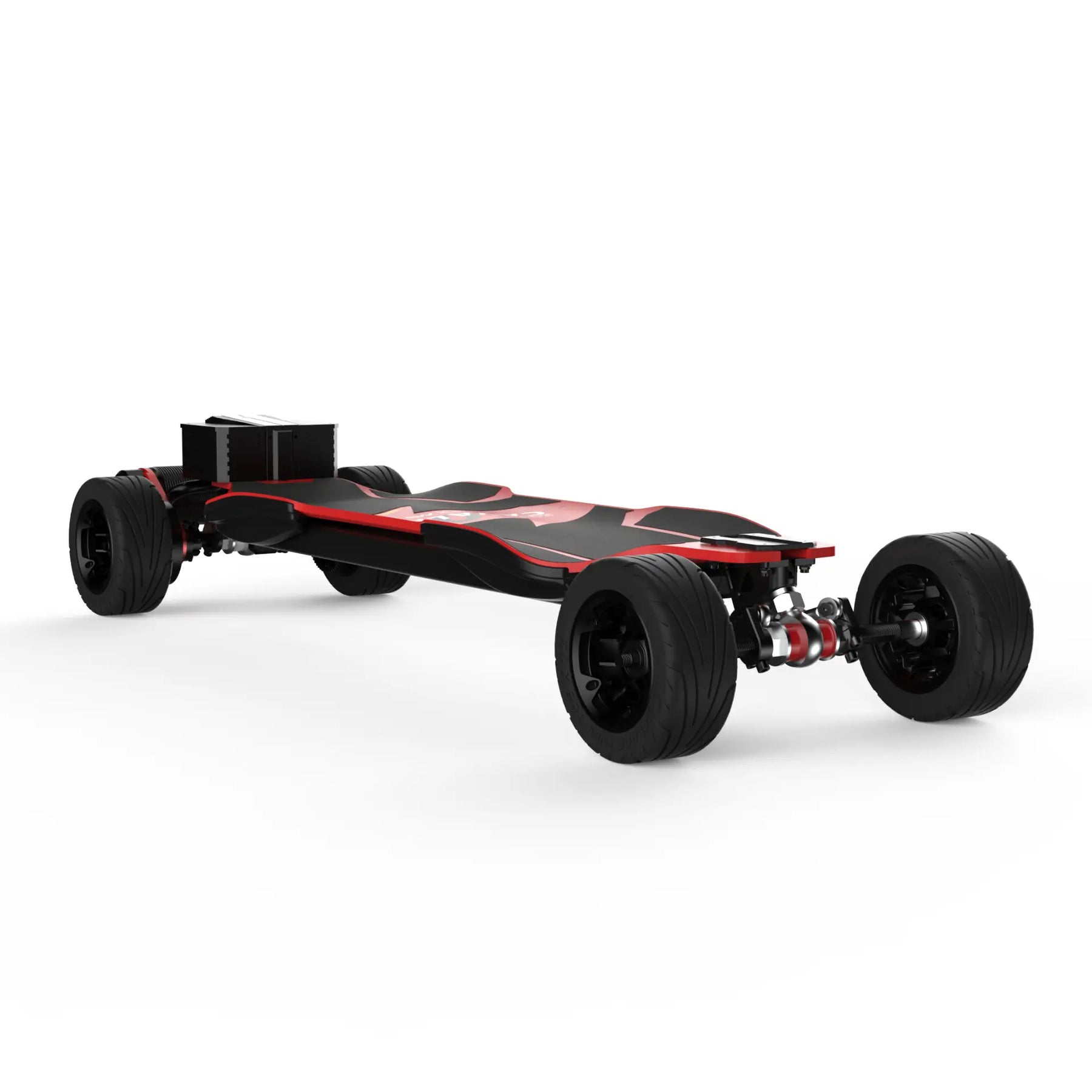

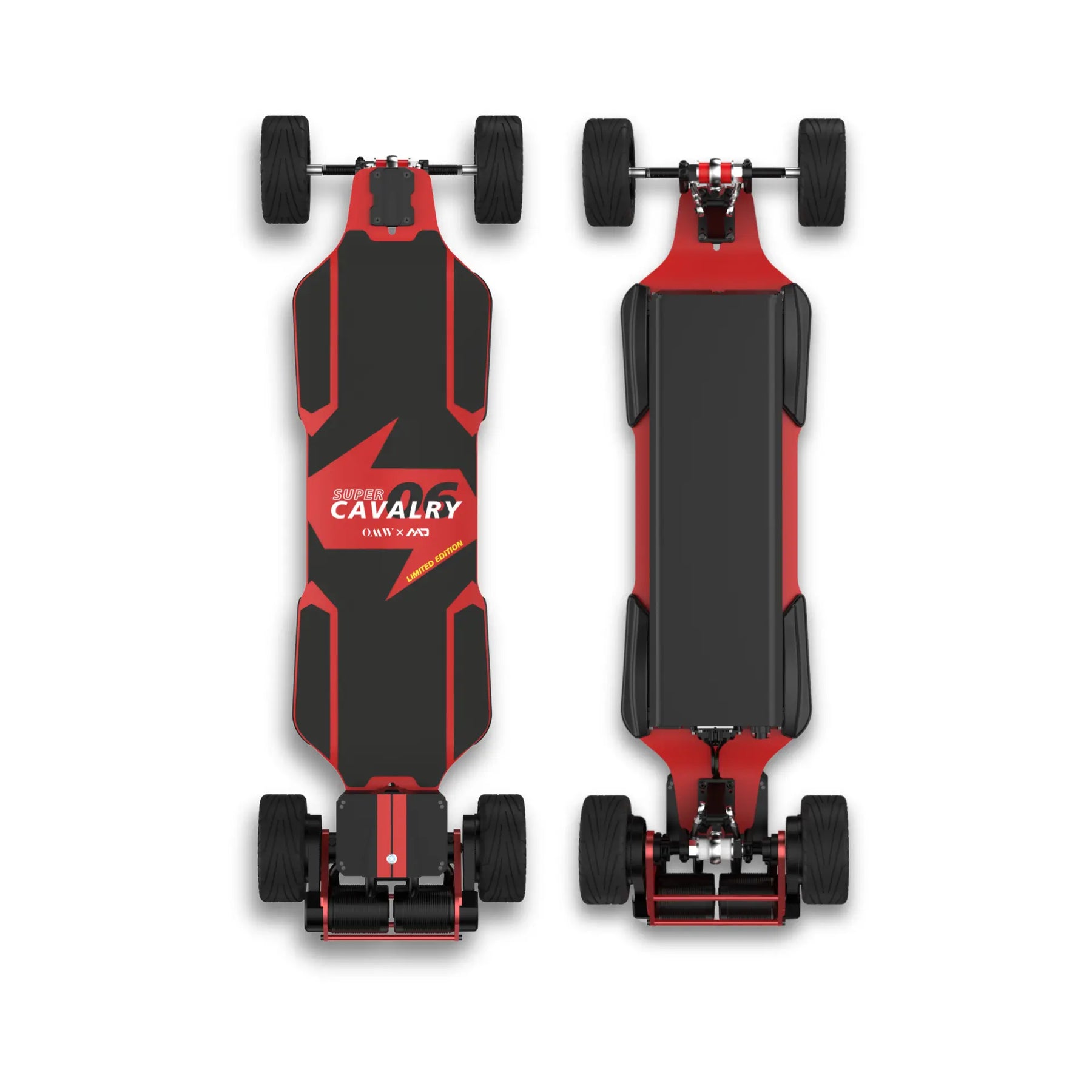

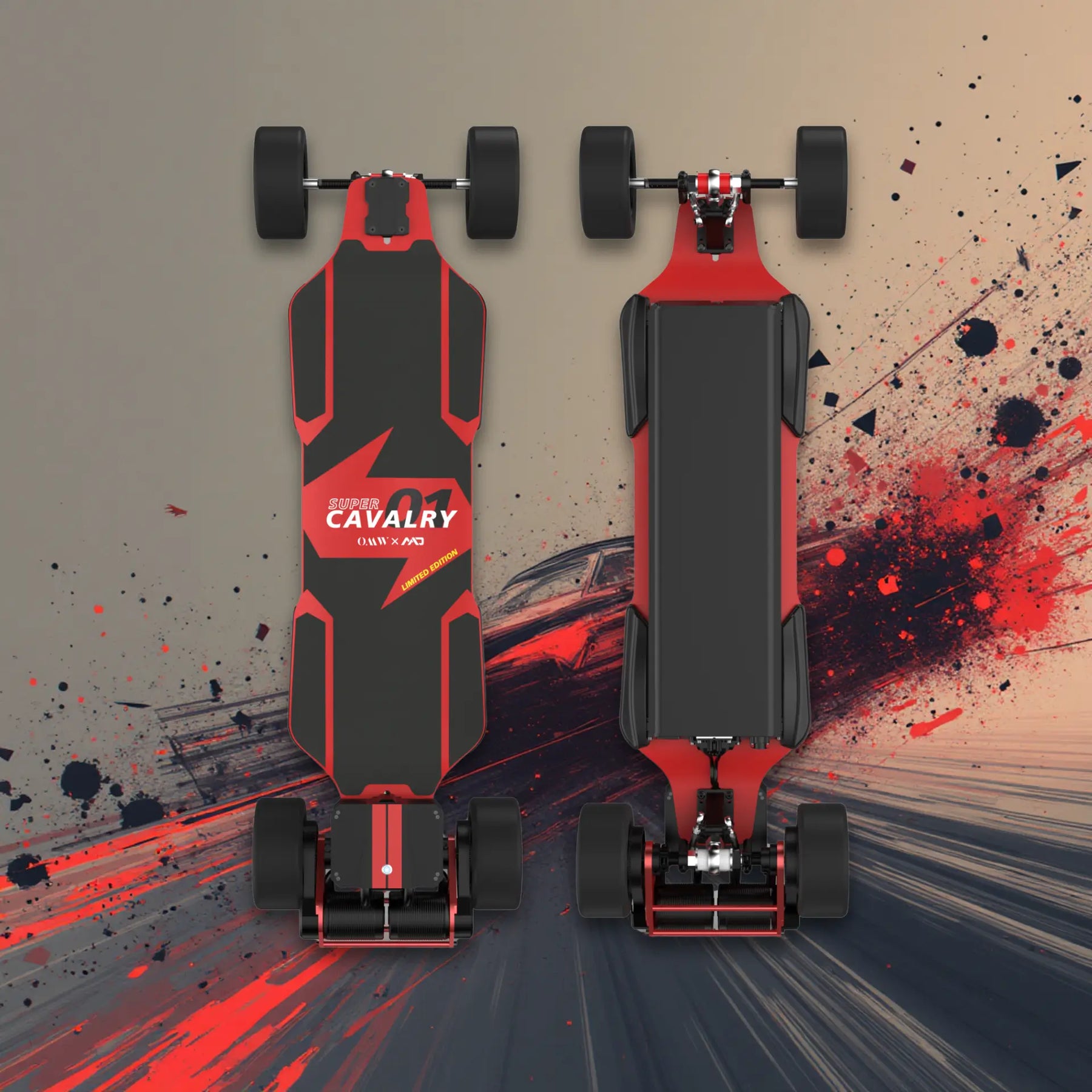

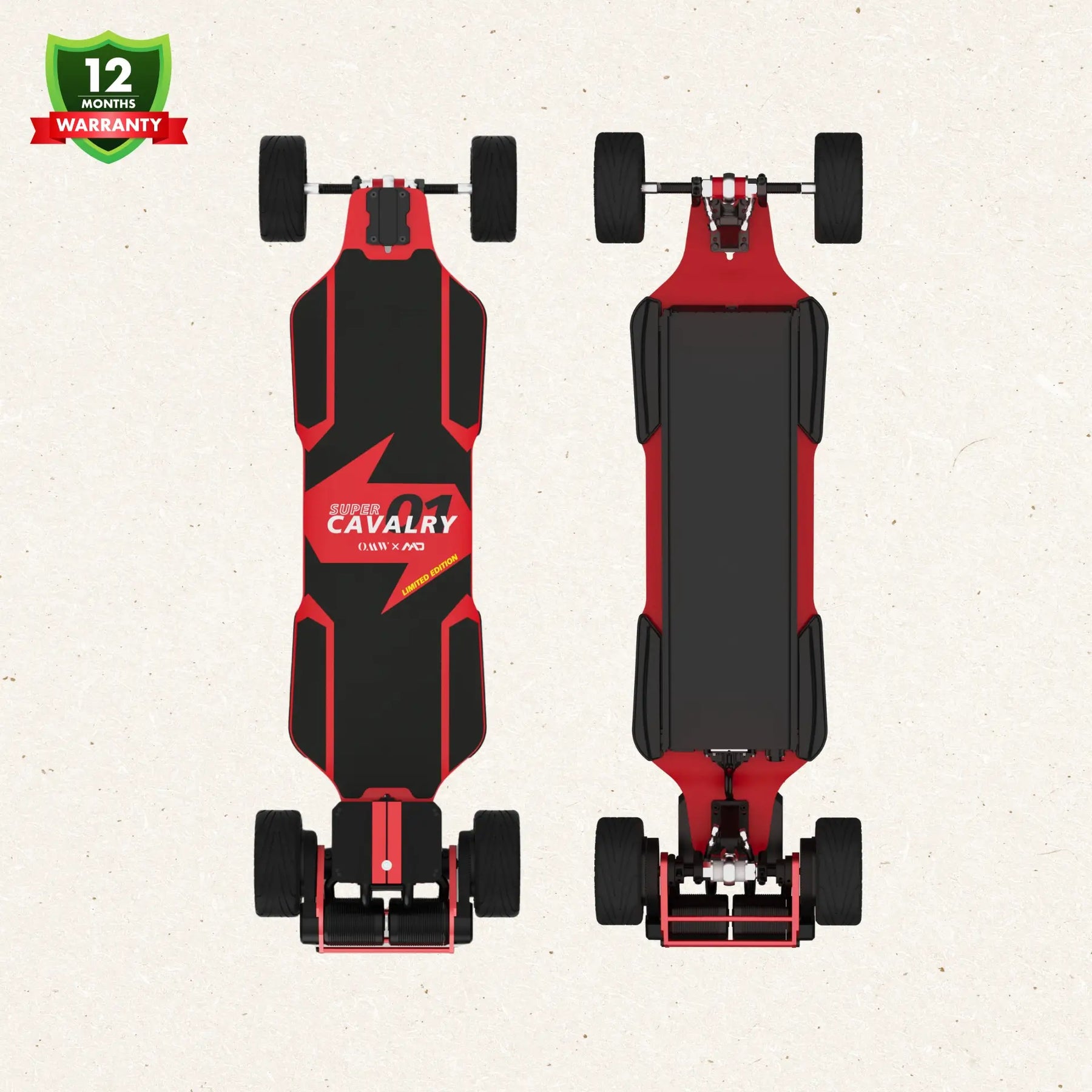

OMW Super Cavalry High Performance Electric Skateboard

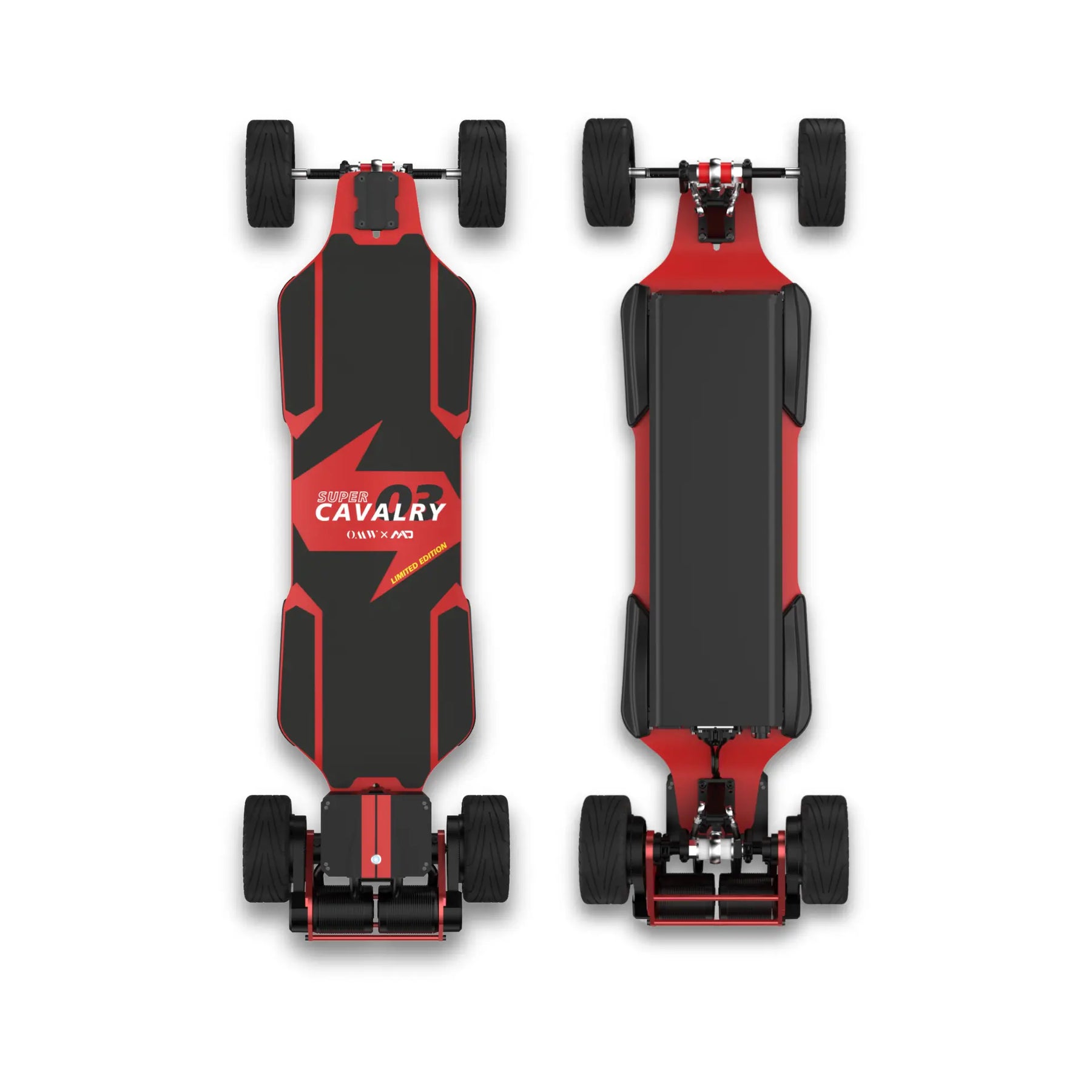

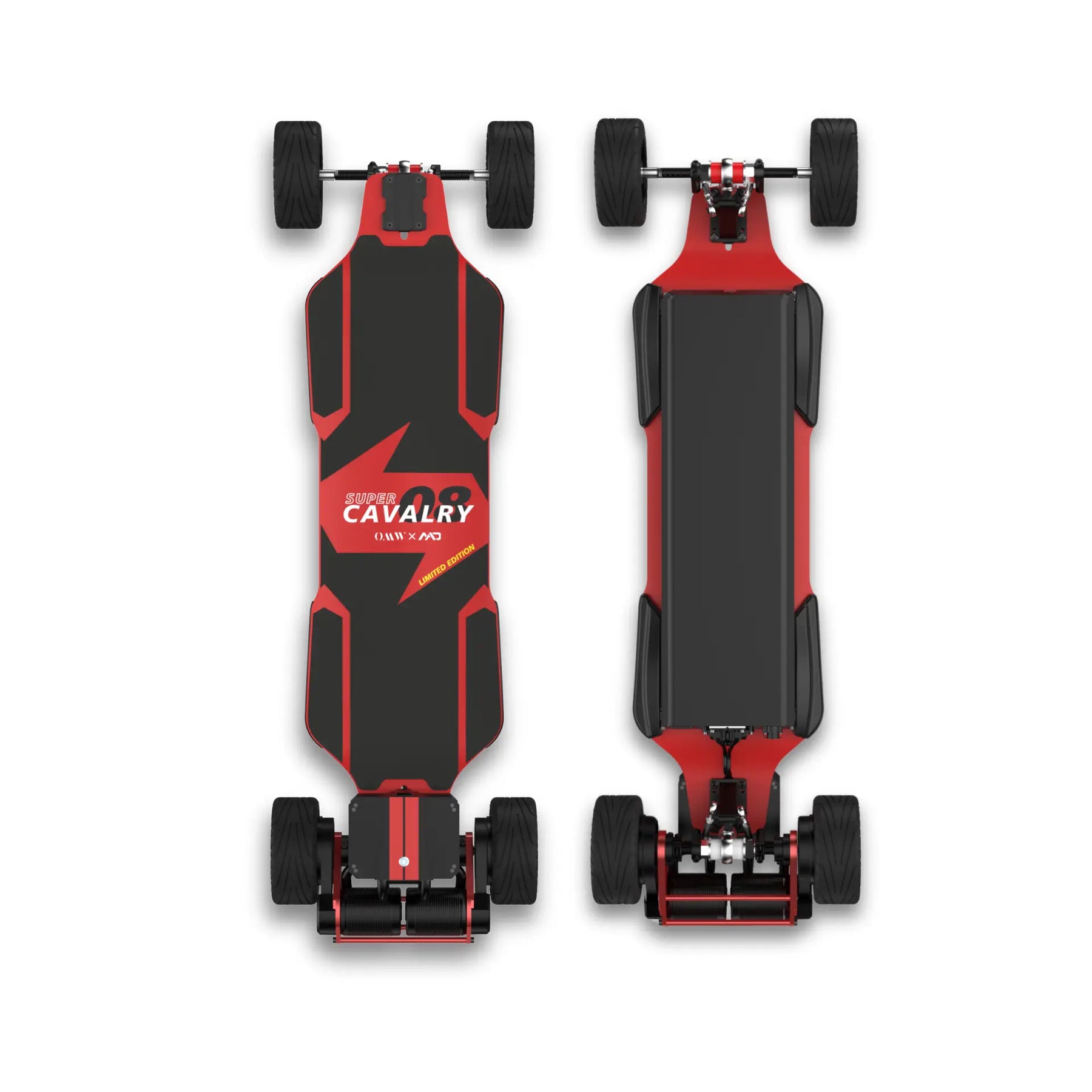

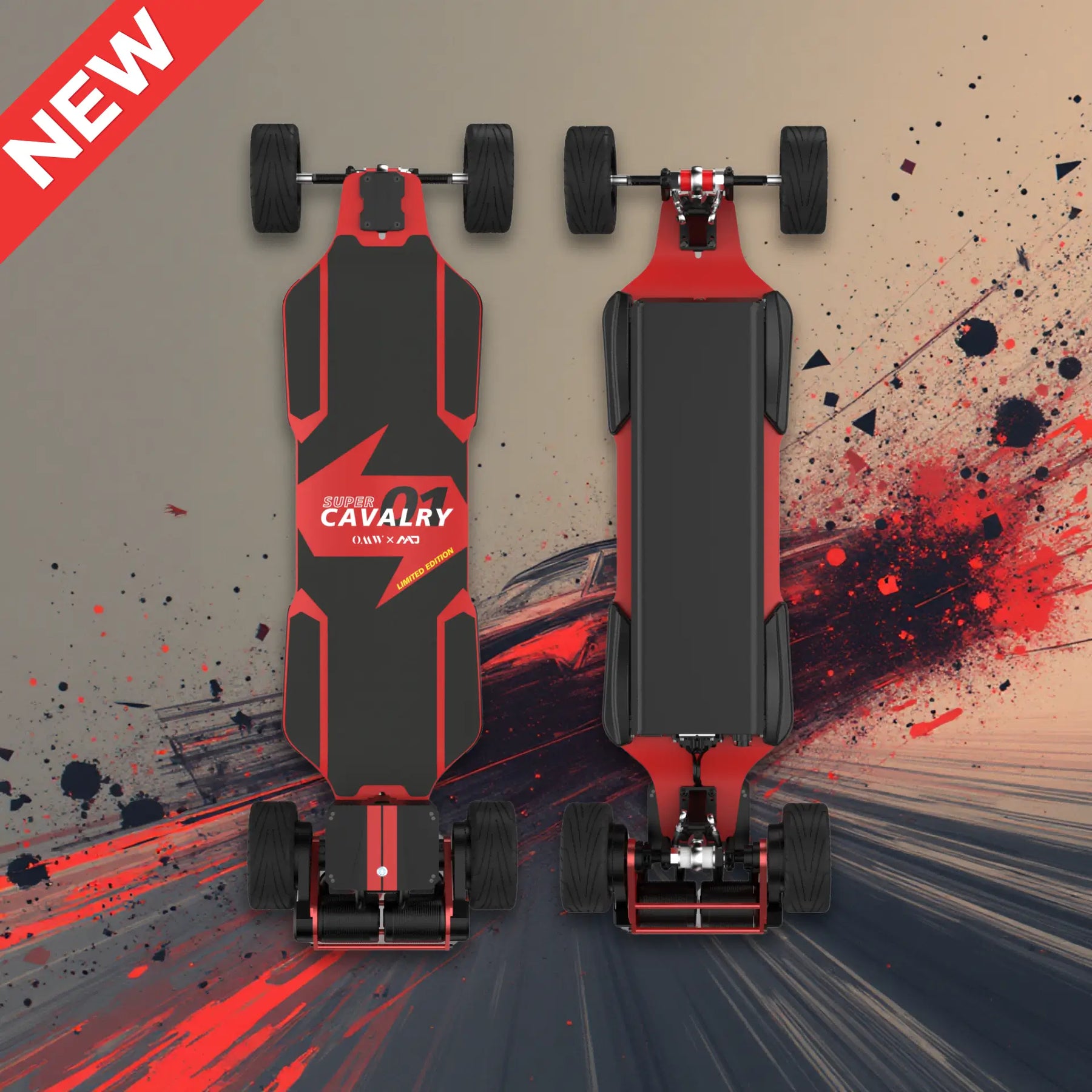

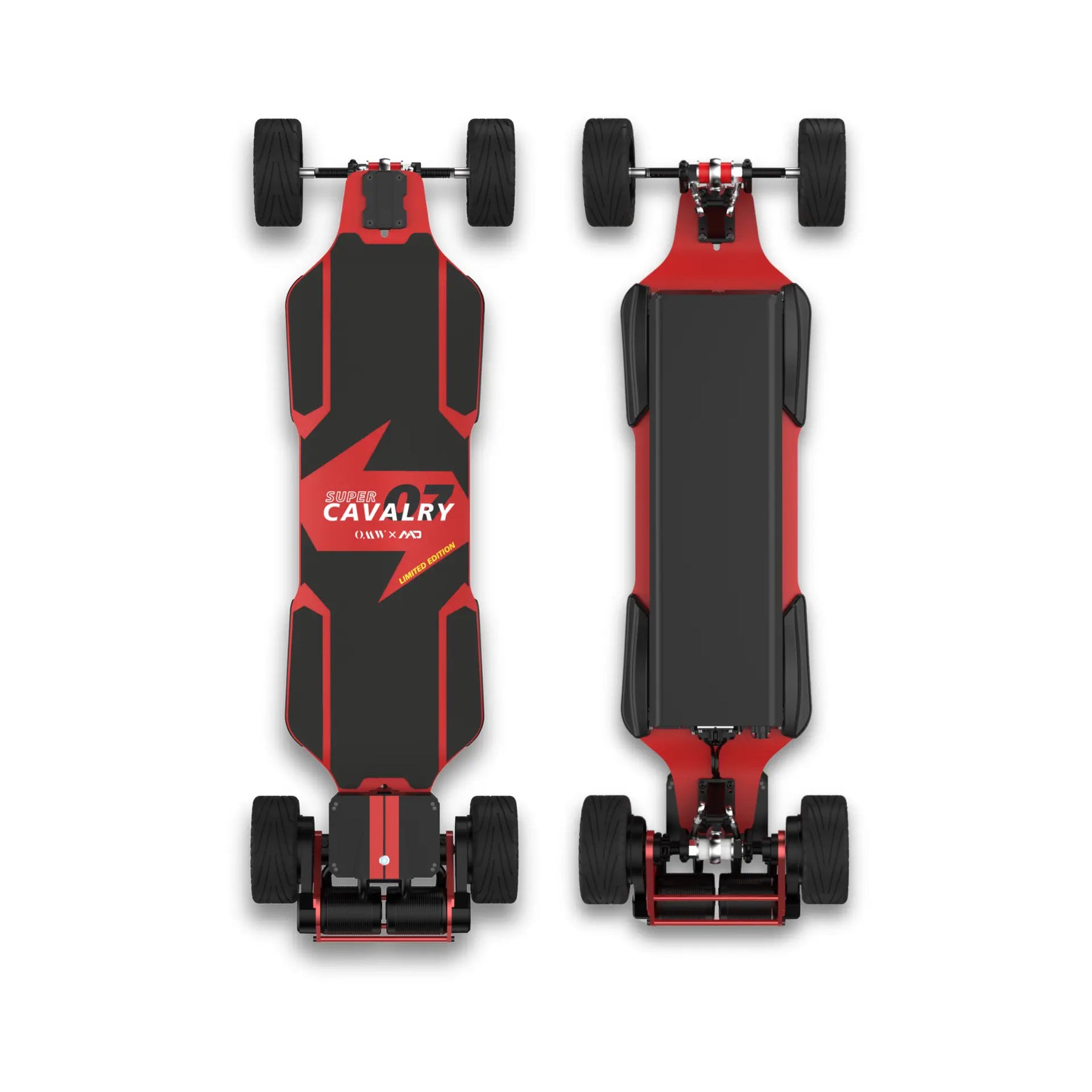

Personalize with your own unique number. Numbers 01–10 can be selected directly above. For other numbers, please select others and leave a note after adding to cart.
Limited Release – Only 10 Units Available!
Limited Release – Only 10 Units Available!
Super Cavalry High Performance Electric Skateboard is built for riders who like to get hands on tuning, tweaking, and pushing their boards to the limit.
- Battery: EVE 40PL 21700 tabless cell, 16S3P, 12Ah, 691Wh
- Motors: Dual DXW 6890, maximum power: 9000W *2, real-world output: 3360W *2
- ESC: Hobbywing 9058, bus current: 100A, phase current: 150A; Self-tuning & universal motor compatibility
- Trucks: MAD 3-Links
- Wheels: MAD 165mm street tubeless wheels or 160mm hot melt racing slicks
- Bushing: Riptide bushings (84a, 87a and 90a)
- Top Speed: 44+mph / 70+kmh
-
Tested Range: 19miles / 30km
- Deck Material: Premium Carbon Fiber Composite Deck
- Fast Charger: 10A / 672W, charging time: 1.5h
| Battery | EVE 40PL 21700 tabless cell, 16S3P, 12Ah, 691Wh Max cont. discharge: 70A (single cell), 210A (battery pack) |
| Motors | DXW Dual 6890, maximum power: 9000W * 2, real-world output: 3360W * 2 |
| ESC | Hobbywing latest version 9058 ESC 100A bus current, 150A phase current; Self-tuning & universal motor compatibility |
| Trucks | MAD 3-Links |
| Bushing | Riptide bushings (84a, 87a and 90a) |
| Wheels | MAD 165mm street tubeless wheels or 160mm hot melt racing slicks |
| Acceleration | Specially tuned for pro-level racers in speed mode 4 |
| Top Speed | 44+mph / 70+kmh |
| Tested Range | 19miles / 30km |
| Board Size | 46.5*15.0*8.7inches / 1180*380*220mm |
| Deck Material | Premium Carbon Fiber Composite Deck |
| Deck Size | 37.7*10.9inches / 958*276mm |
| Deck Material | Carbon fiber and fiberglass composite materials |
| Max. Load | 330lbs / 150kg |
| Charging Time | 1.5h with 10A / 672W charger |
| Grip Tape | G60 high-performance racing grip tape |
| Speed Mode | Mode 1: 0-22mph / 0-35kmh Mode 2: 0-31mph / 0-50kmh Mode 3: 0-44mph / 0-70kmh Mode 4: 0-44+mph / 0-70+kmh with pro-level acceleration |
| Braking | Regenerative braking & adjustable braking strength |
| Remote |
Hobbywing OLED remote |
| Dive System | Belt drive |
| Drive Ratio | 165mm street tubeless wheels (60T pulley): 4 160mm racing slicks (60T pulley): 4 |
| Hill Climbing | 60% |
| Board Weight | 44lbs / 20kg |
| Waterproof | IP56 *Not recommended for riding in rainy/wet conditions |
- Status: Pre-order now — limited to 10 units only.
- Shipping: Orders will be shipped out within 2 months after purchase.
- Availability: Currently only available for U.S. customers (excluding Hawaii, Alaska, Puerto Rico, and Military Regions).
If you need advice or support, please contact:
- WhatsApp: +1 (347) 263-5988
- Email: sales@omwboards.com

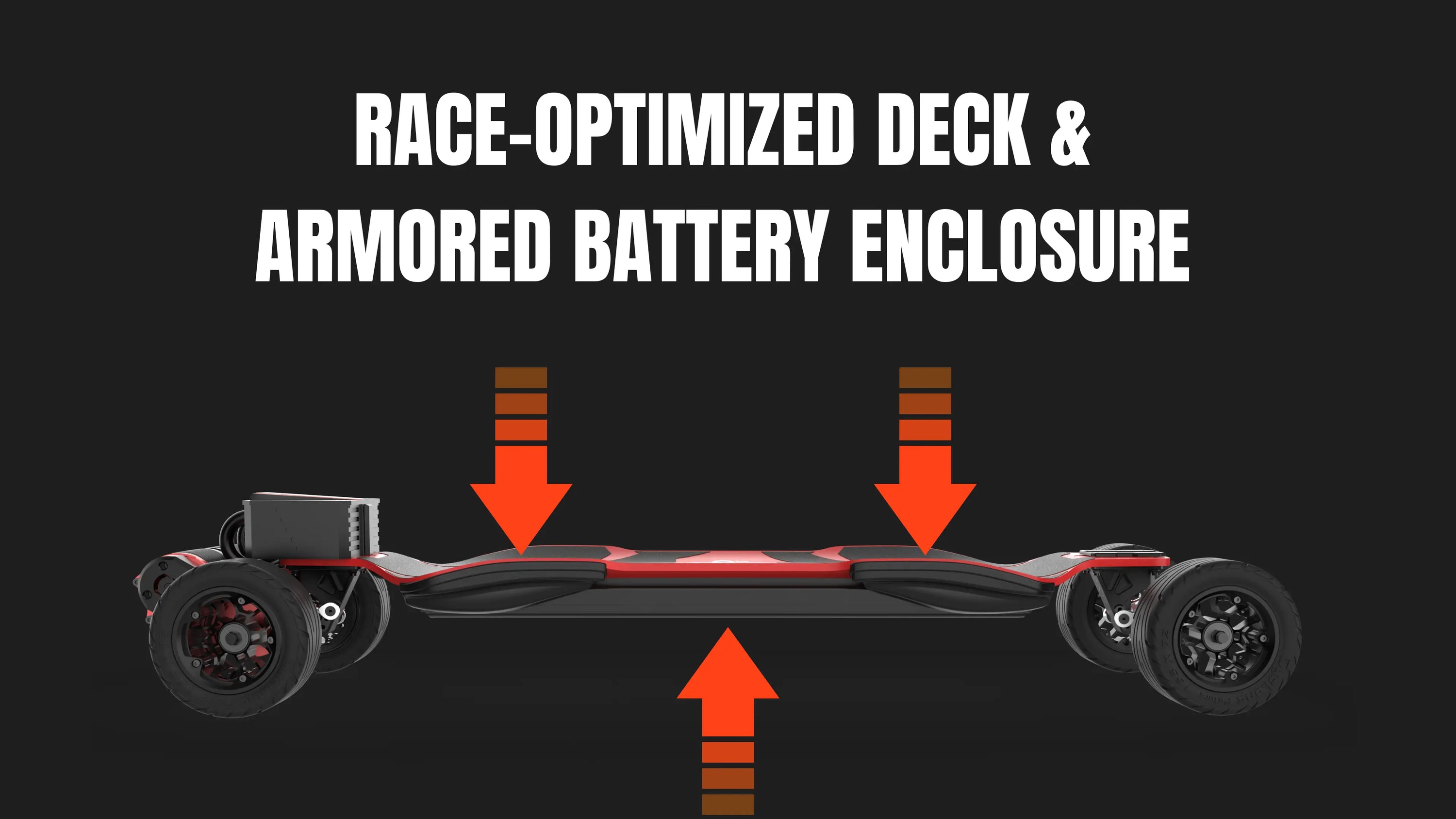

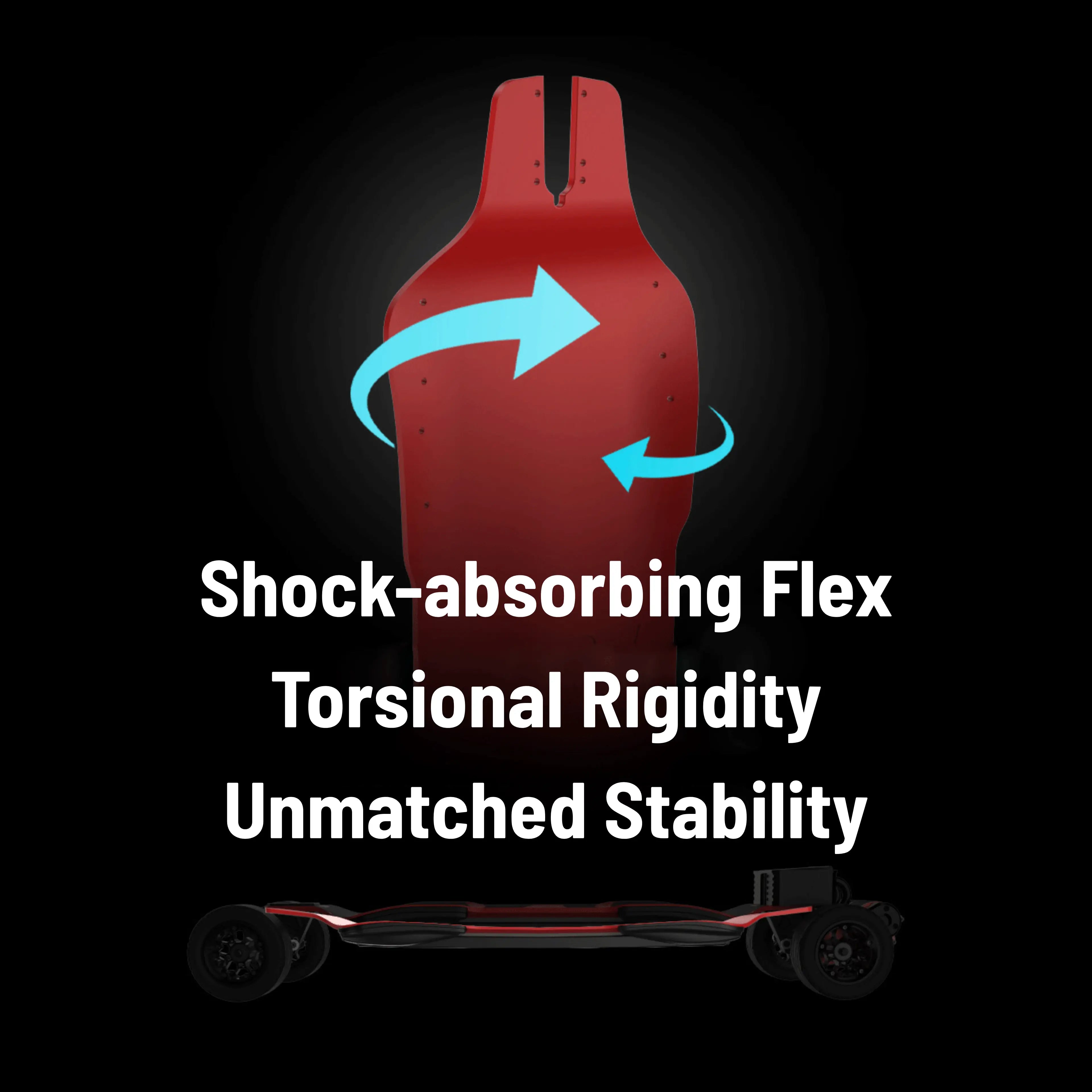

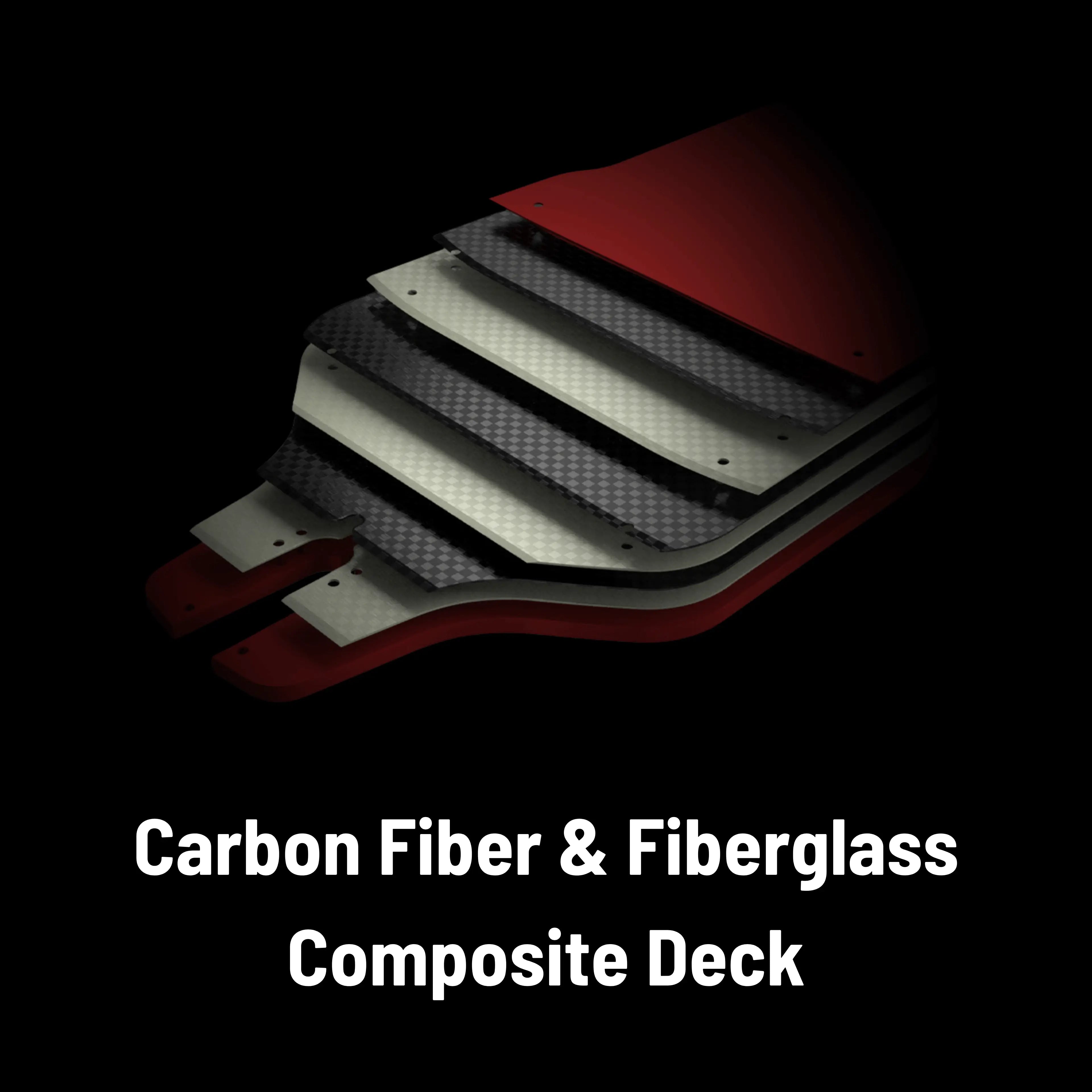

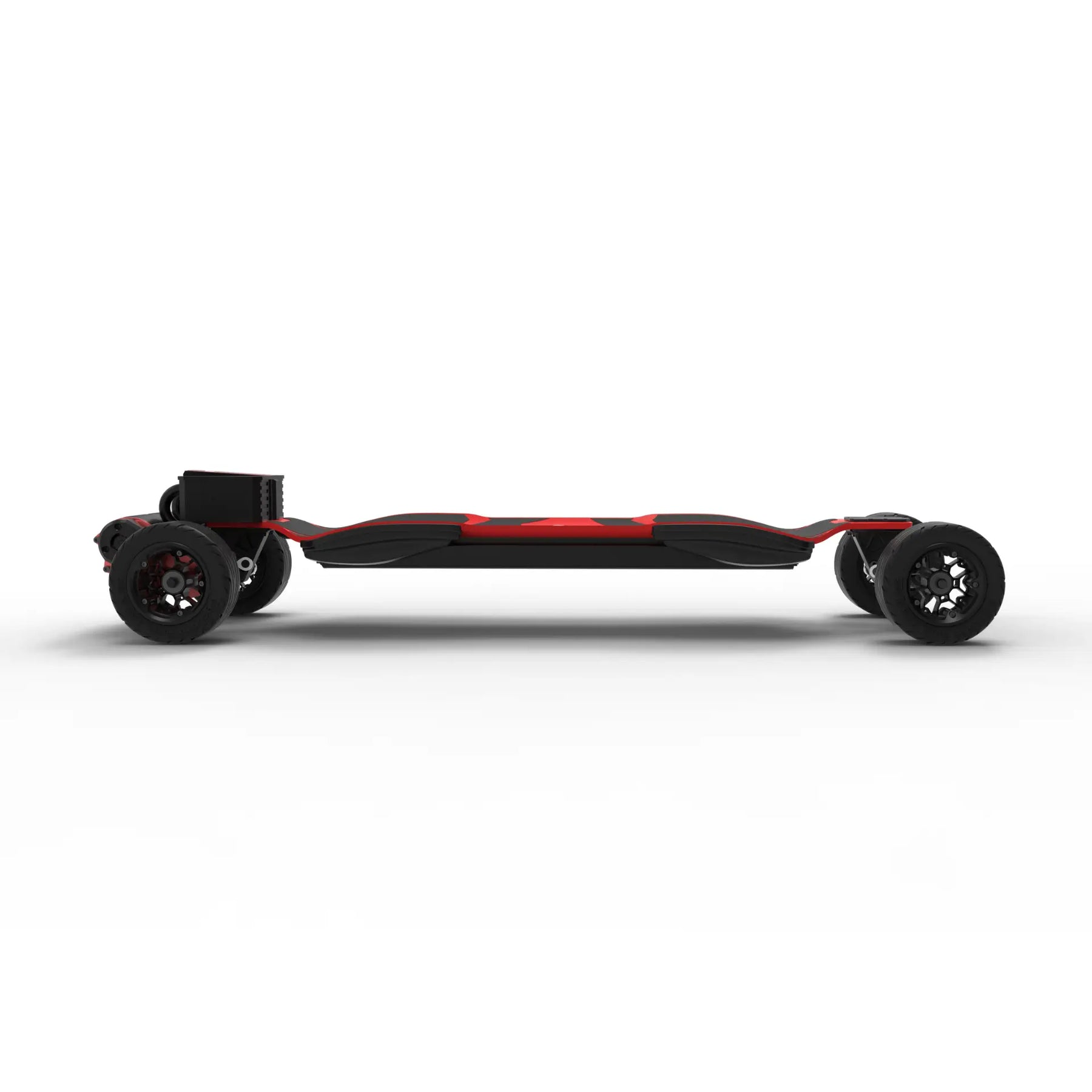

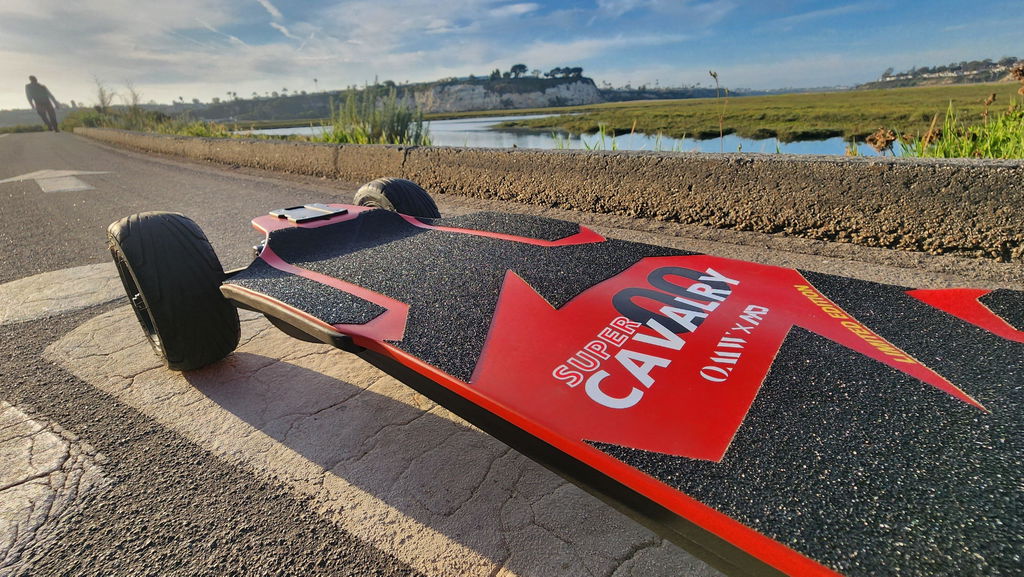

Super Cavalry features a premium composite flexible deck seamlessly paired with an armored aluminum-reinforced battery enclosure, engineered to deliver maximum stability, durability, and responsiveness even under extreme conditions. The deck provides controlled longitudinal flex to absorb vibrations and enhance comfort, while maintaining exceptional torsional stiffness that eliminates unwanted twist. This precision-tuned balance minimizes flex-induced energy loss, ensuring direct and predictable power delivery. This delivers unmatched stability, grip, and confidence, allowing riders to carve aggressively and push harder at high speeds.
INNOVATION FEATURES
High-Performance Battery

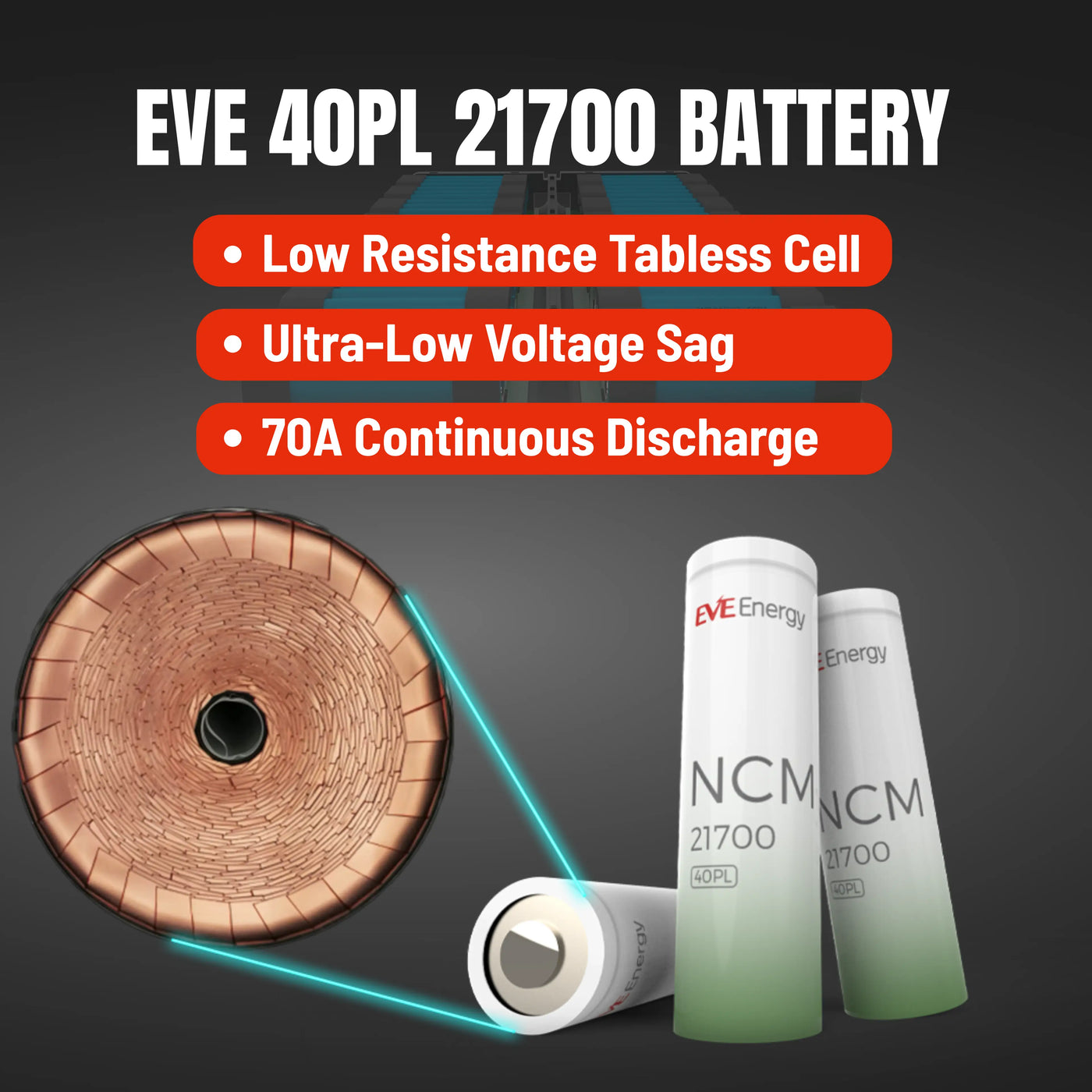

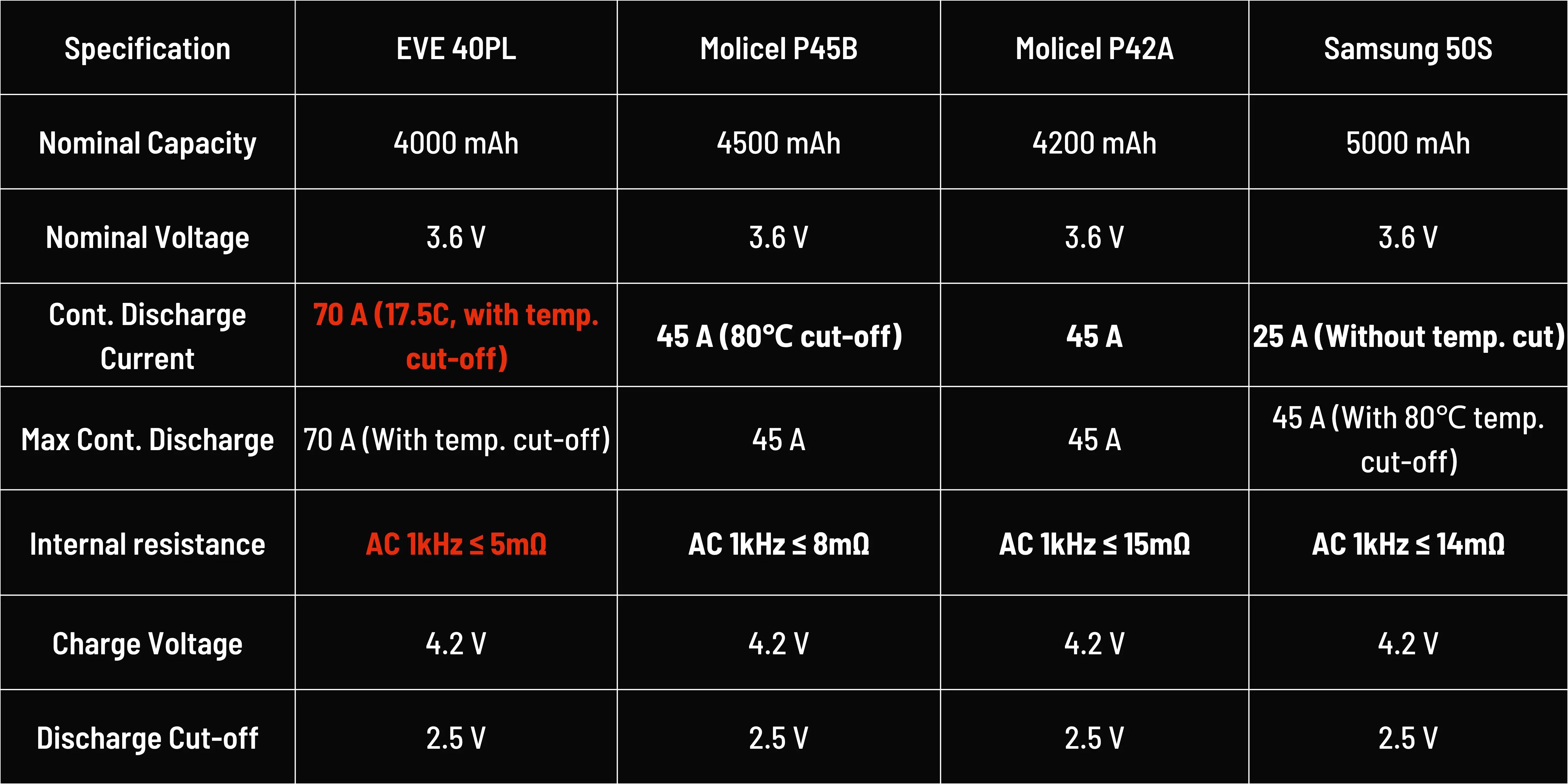

The EVE 40PL 21700 cell adopts an advanced tabless design that effectively eliminates the current bottlenecks caused by traditional tabs. It achieves ultra-low AC internal resistance (≤5mΩ), significantly reducing voltage drop (voltage sag) during high-current discharge and maintaining stable, efficient voltage output during high-current operation. With a continuous discharge rating of 70A and a nominal capacity of 4000mAh, the 40PL cell delivers stable voltage and reliable power output even under heavy load conditions. The minimized voltage drop ensures consistent performance and improved efficiency in applications requiring sustained high power, making the EVE 40PL cells deliver strong, consistent performance even when battery levels fall below 50%.
Intelligent Control

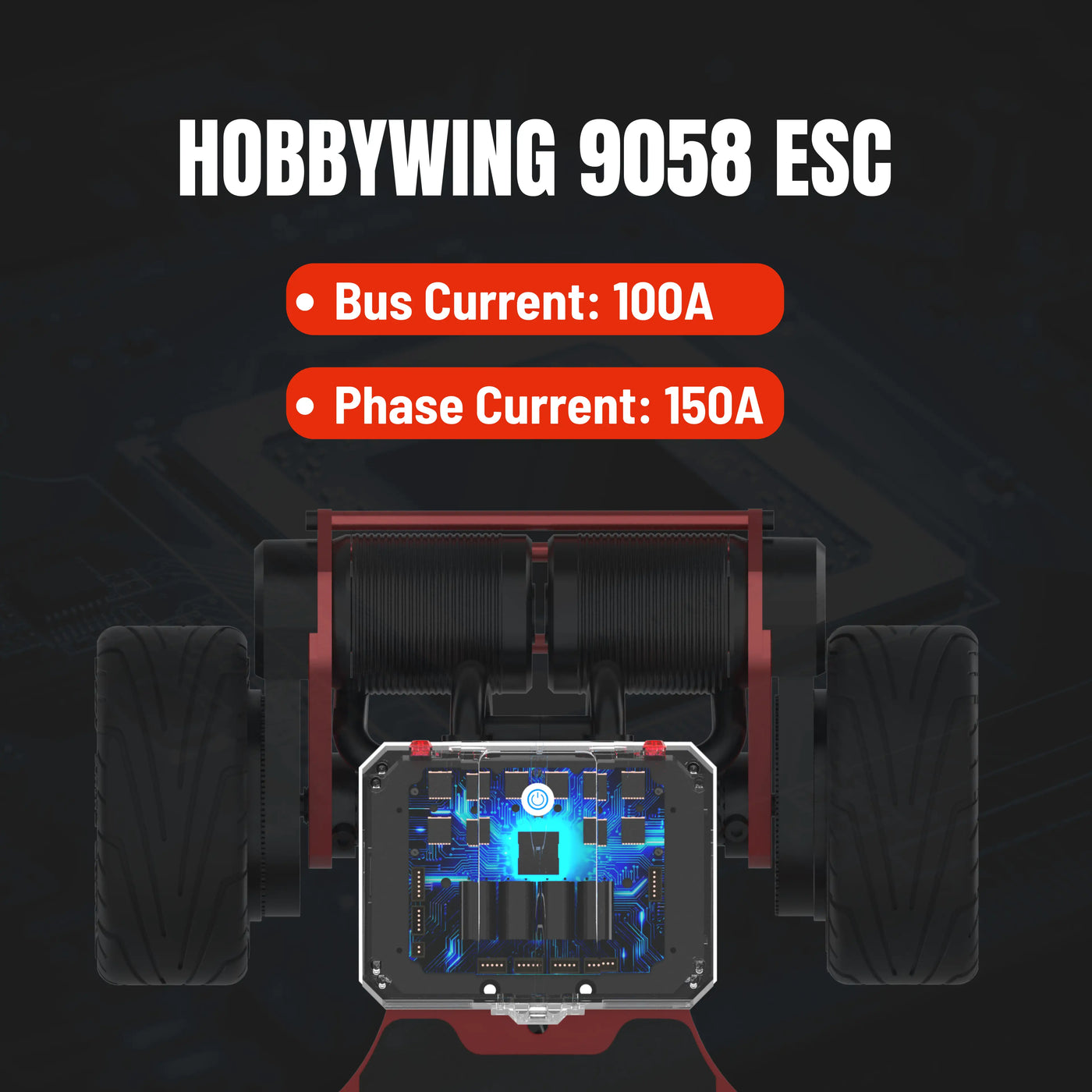

Hobbywing 9058 ESC serves as the core of the Super Cavalry system, delivering 100A bus current and 150A phase current with high efficiency and stability. Powered by FOC vector control technology, it provides smooth, quiet, and responsive acceleration. Through refined tuning, it offers two top-speed modes (Mode 3 and Mode 4) — both capable of reaching 44+ mph / 70+ kmh, but featuring distinct acceleration profiles. Mode 3 is optimized for balanced control, making it suitable for high-performance riding or for entry-level racing; while Mode 4, specially calibrated by the MADESK8 racing team, unlocks raw instinct—throttle response with zero lag, crafted for experienced riders who demand the sharpest tool for the track.
With Hobbywing 9058 ESC's self-learning capability, Super Cavalry seamlessly adapts to a wide range of motors. As your skills grow, it keeps pace.
Extreme Power

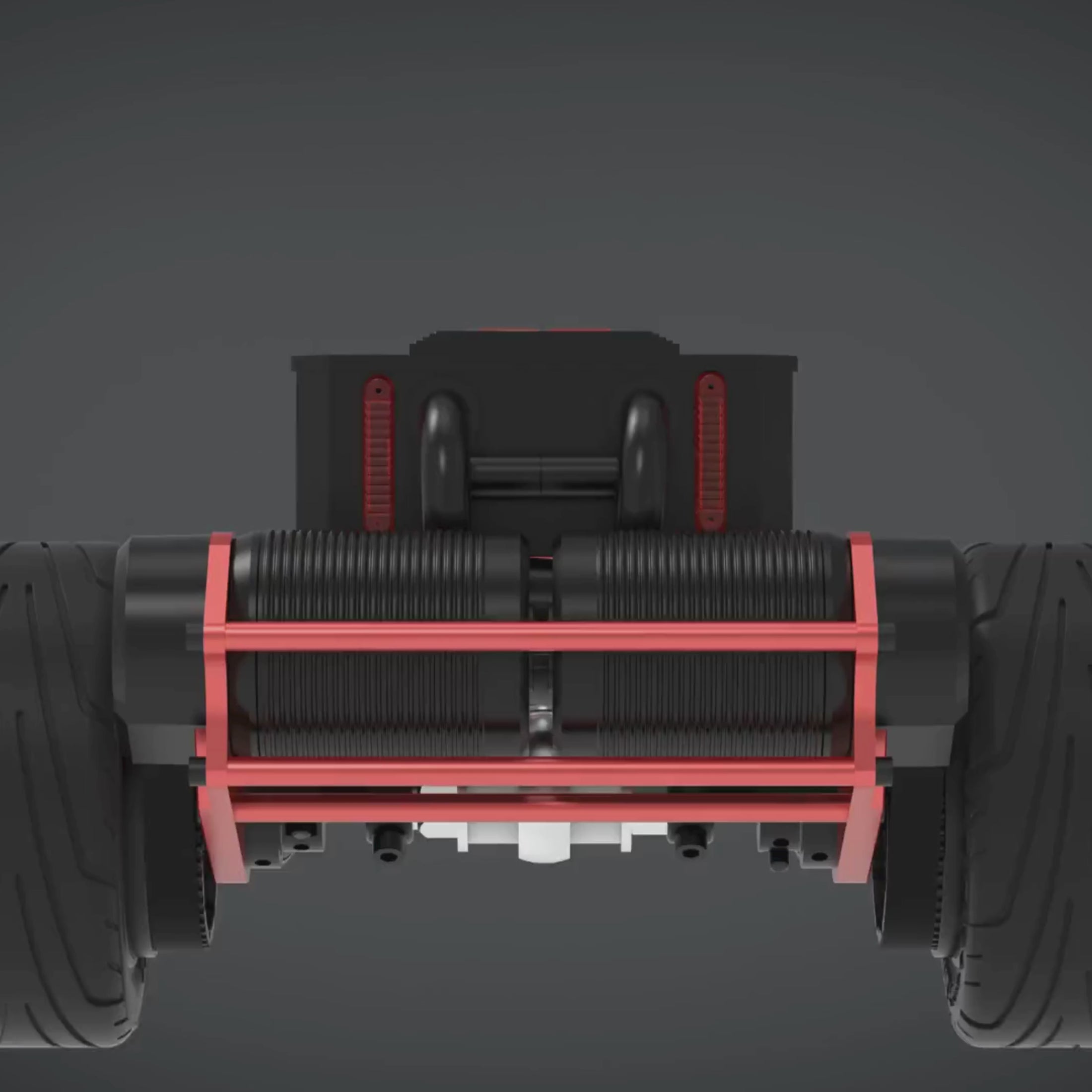

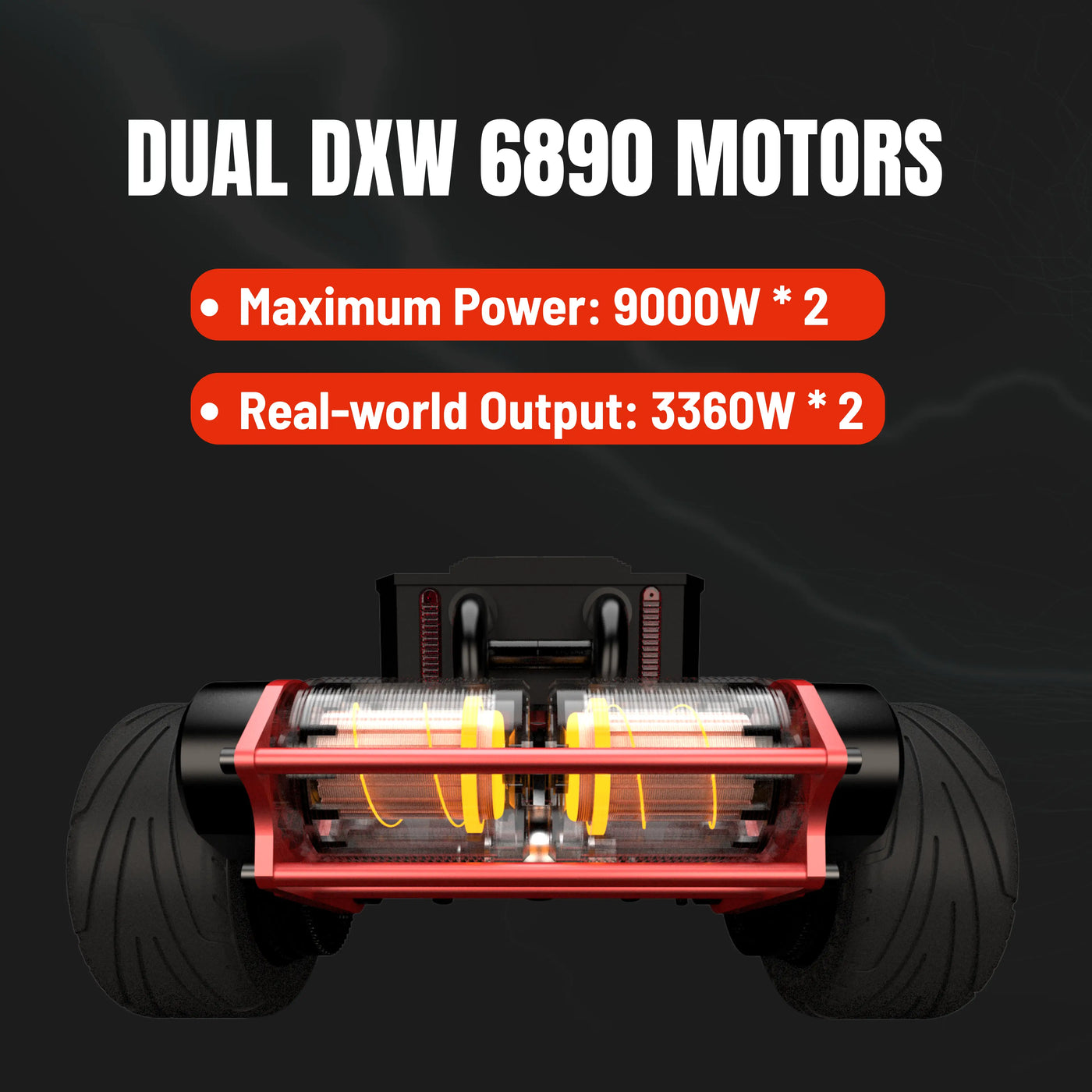

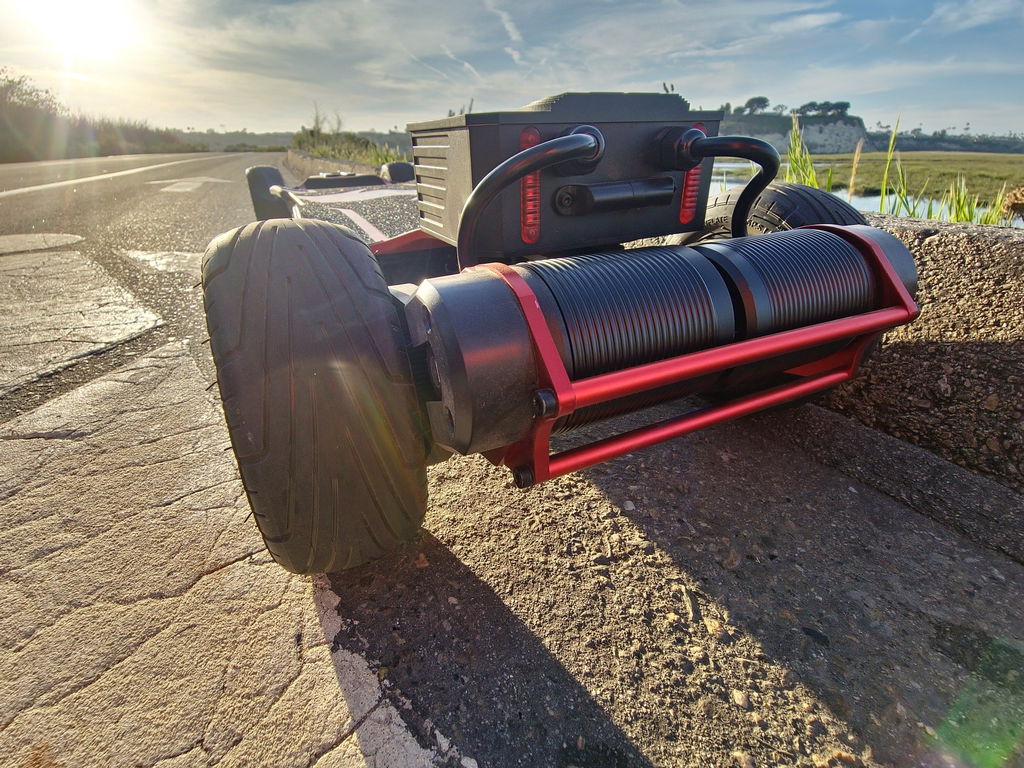

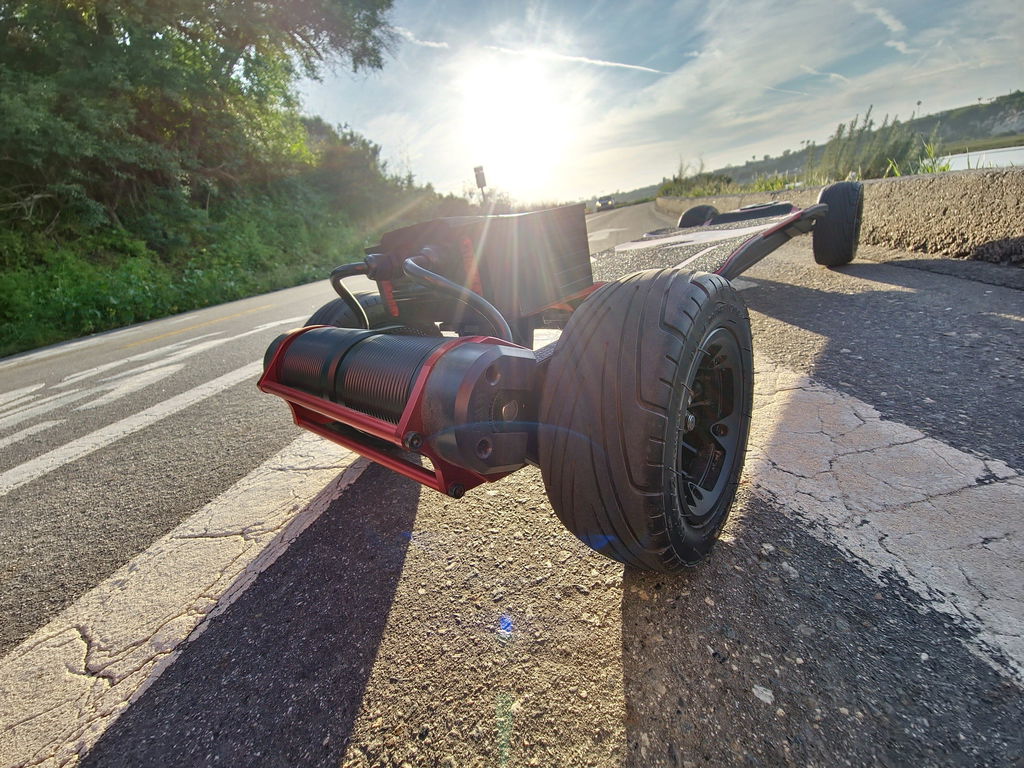

Push the limits with the DXW 6890 dual motor system, engineered for race-level high performance. Each motor delivers up to 9000W maximum power and 3360W real-world output, providing instant torque and explosive acceleration for sprinting, hill climbing, or high-speed cornering. Built for stability and durability at maximum load, this setup maintains precise control even in demanding conditions, making it ideal for riders who require strong, consistent power without compromising handling.
OMW × MADESK8
Elite Handling

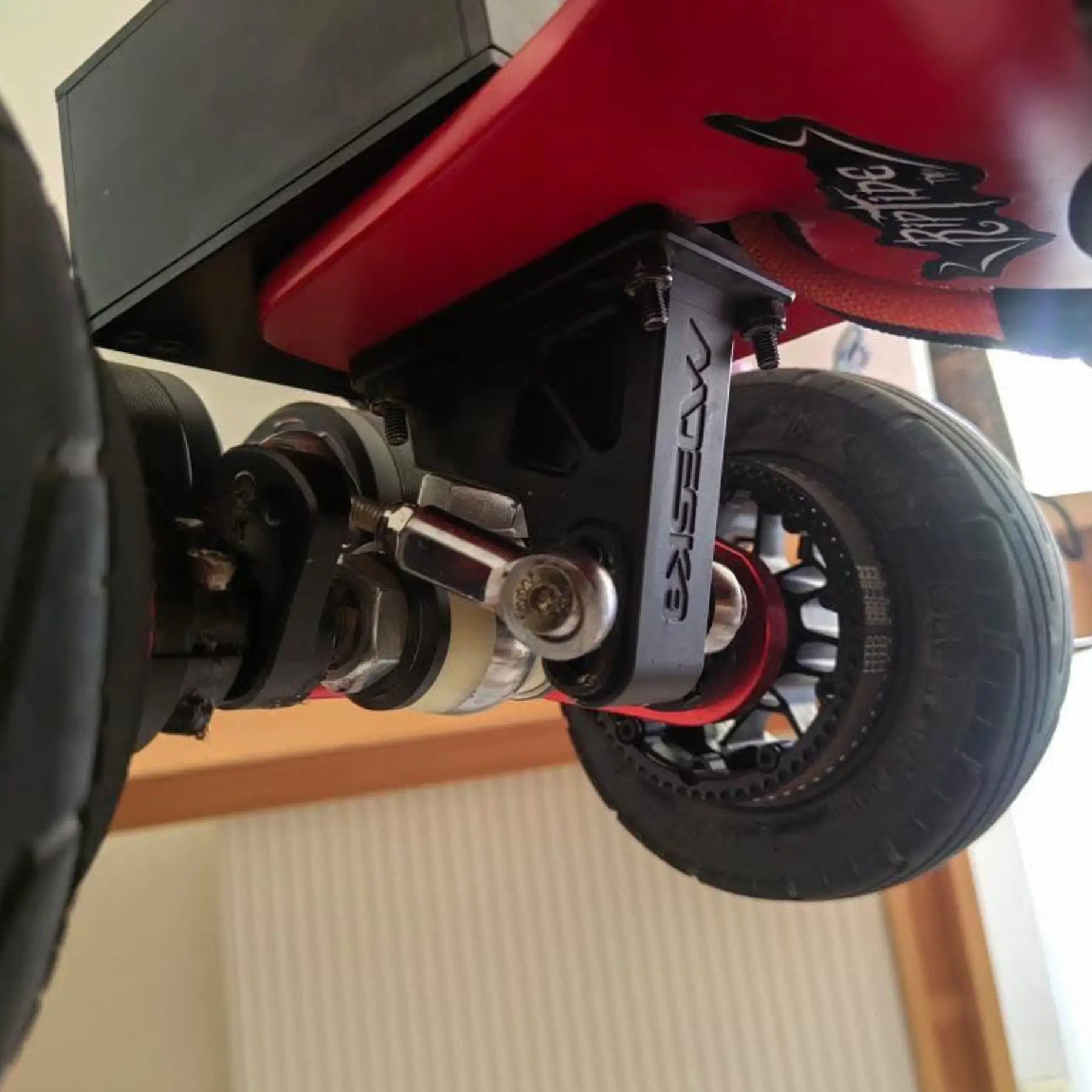

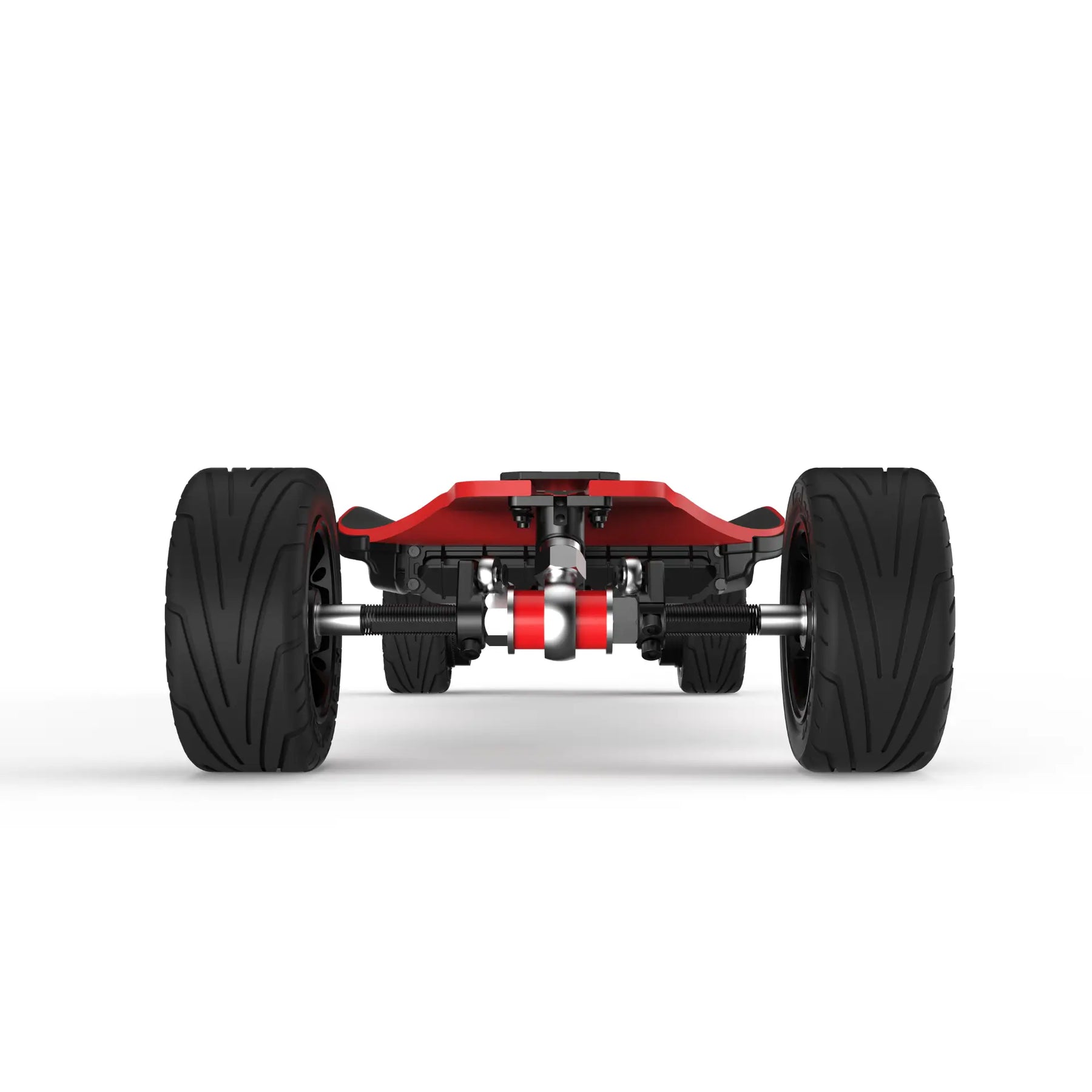

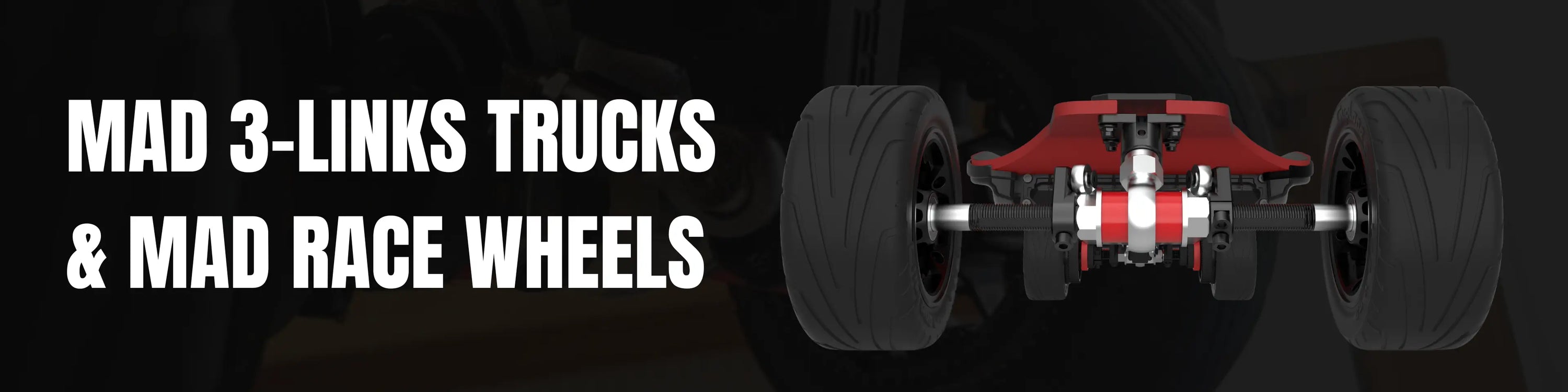

The MAD 3-Links trucks form the core of the Super Cavalry’s precise handling, blending the responsive carving of DKP trucks with the stability of TKP setups. Constructed from heat-treated 300mm B7 steel hangers designed to resist bending under normal use, and equipped with precision heim joints and spherical bearings, they deliver exceptional lean, leverage, and control. This engineering provides superior speed stability, smooth carving, and full adjustability, offering serious racers and DIY builders a level of performance and tuning potential that regular trucks cannot match.
Race-Grade Wheels

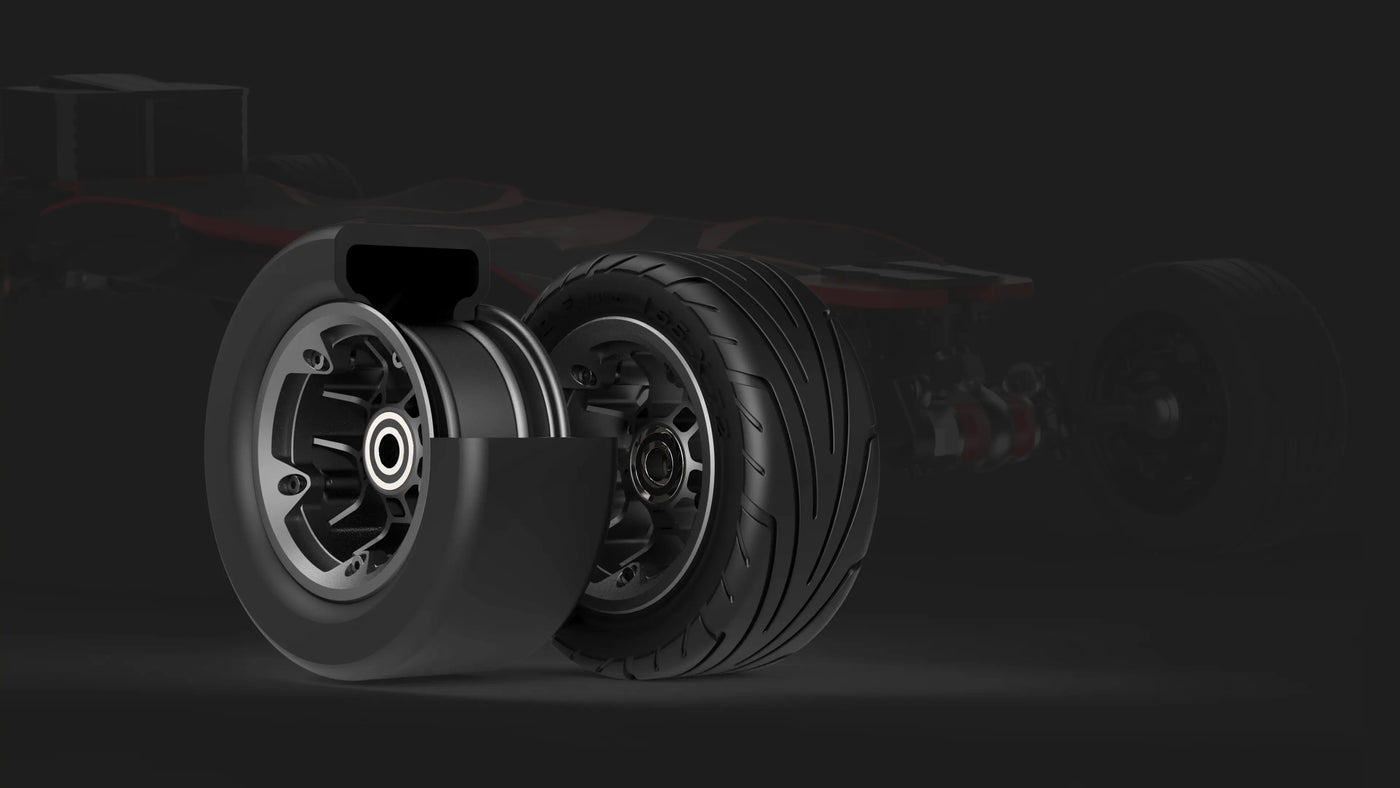

Super Cavalry features lightweight, tubeless MAD Race Wheels (MAD 165mm street tubeless wheels or 160mm hot melt racing slicks) that deliver unbeatable grip and reduced rolling resistance. When paired with the MAD 3-Links trucks, they work in perfect synergy—acting as a unified system to provide race-ready stability, precise control, and superior cornering performance. Ideal for both group rides and competitive racing.
More Exquisite Details

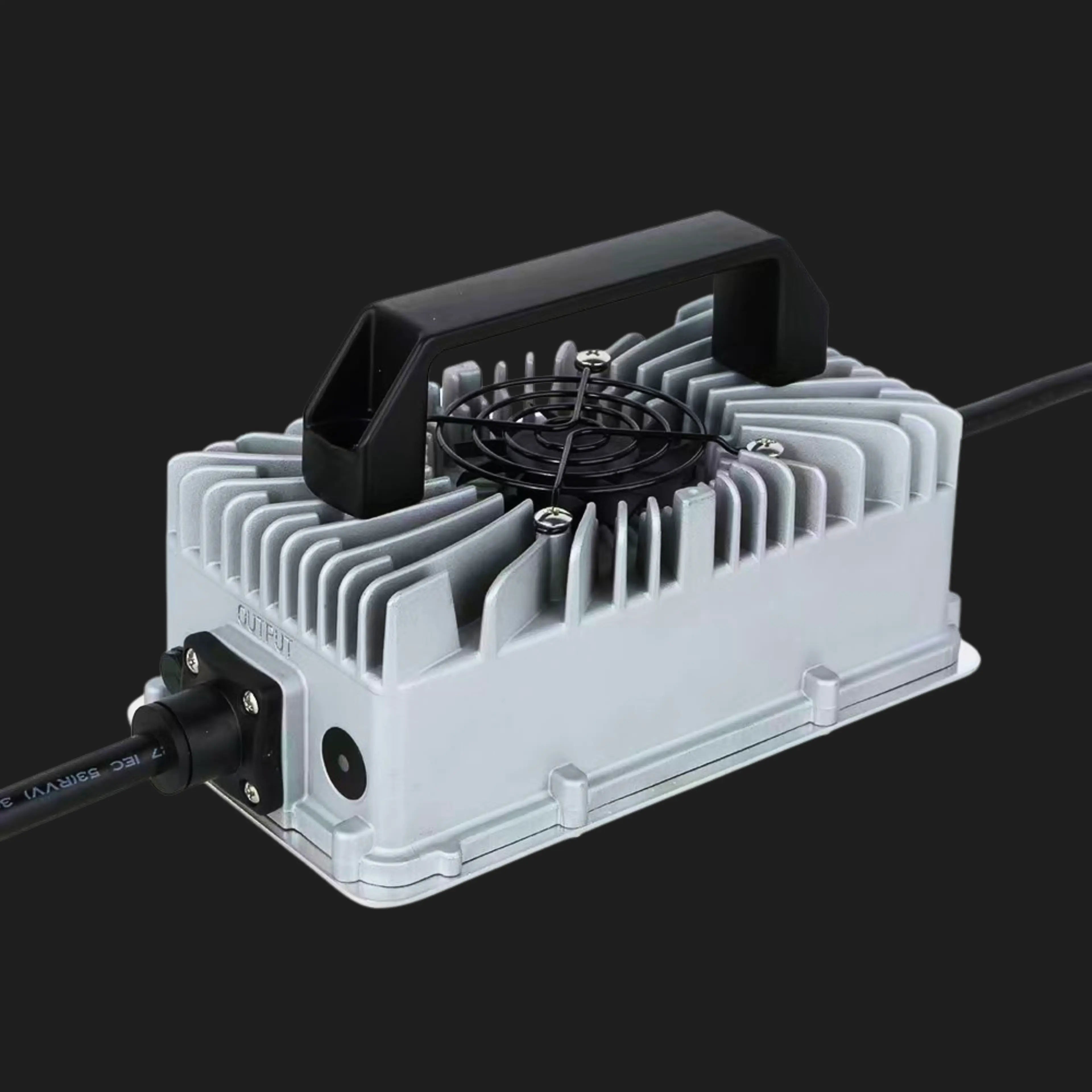

10A / 672W Fast Charger

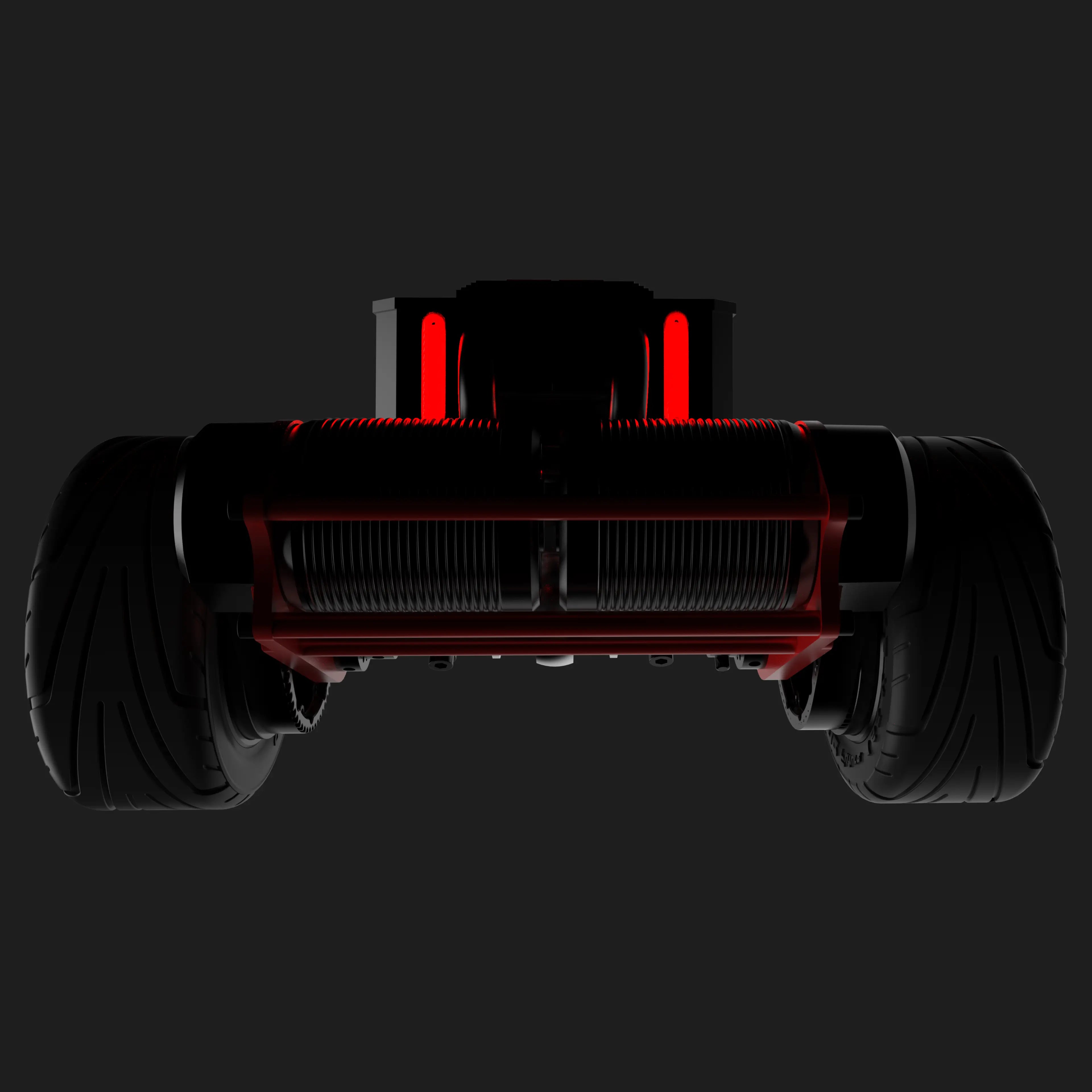

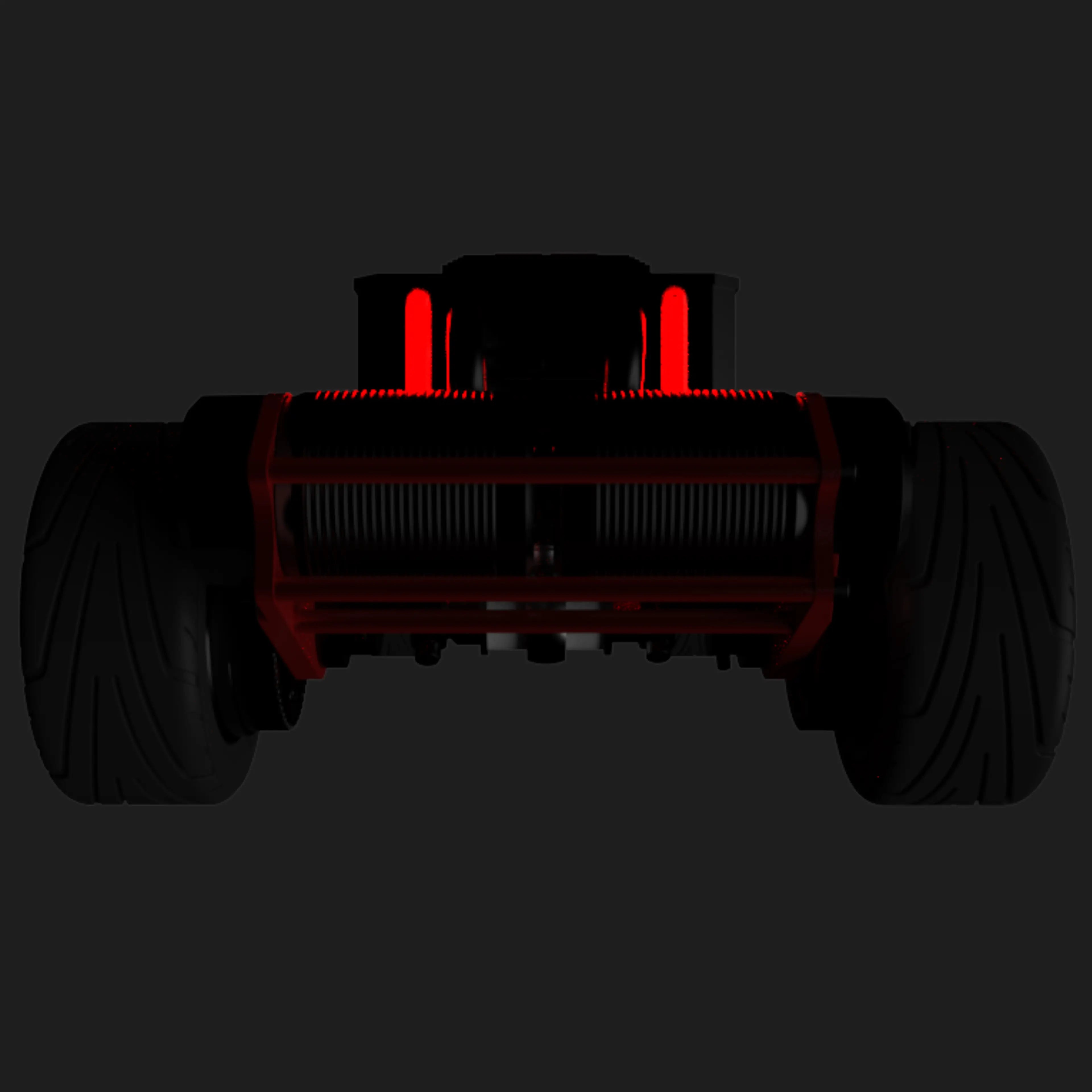

Standard Tail Light Kit
FAQ
At the core of Super Cavalry’s razor-sharp handling lies the legendary MAD 3-Links suspension system—engineered to deliver an unmatched combination of lean, leverage, and precision that conventional trucks simply can’t match. Paired with lightweight, tubeless MAD Race Wheels (MAD 165mm street tubeless wheels or 160mm hot melt racing slicks), this setup forms a perfectly synchronized system that offers unbeatable grip, reduced rolling resistance, and race-ready stability. The result is precise control and superior cornering performance, whether you’re carving with friends or pushing limits in competitive racing.
(Want to see them in action? Check out expert reviews on KAMi JUIN’s channel or visit the MADESK8 website for full technical details.)
Currently only available for U.S. customers (excluding Hawaii, Alaska, Puerto Rico, and Military Regions).
Pre-order now — limited to 10 units only. Orders will be shipped out within 2 months after purchase.
- Sea shipping: 30-35 working days
- Air shipping: 10-15 working days
Super Cavalry Board enjoys a 12-month warranty, including truck, remote, battery, ESC, and motors.
The following situations and components are not covered under warranty:
- Wear-and-tear items that naturally deteriorate over time, including bearings, belts, tubes, tires, bushings, grip tape, and wheels.
- Damage caused by misuse, abuse, neglect, or accidents, such as riding in wet conditions, dropping the board, or improper handling.
- Super Cavalry is rated IP56, offering protection from light splashes and dust under normal conditions. However, riding through puddles, heavy rain, or immersing the board in water may cause moisture to enter the electronics and lead to permanent damage. Riding on wet surfaces is unsafe and increases the risk of slipping during acceleration, braking, or turning. If water enters the board, the inspection label inside will turn red.
- Man-made damage, including modifications, unauthorized repairs, or failure to follow the user manual, as well as negligent use (for example, prolonged high-power riding without timely recharging).
- Any modified, poorly maintained, or improperly assembled eboards or DIY key parts (battery, ESC, motors, etc.) will have their warranty voided.
- The warranty covers replacement of defective parts only, not a new E-skateboard replacement.
- The warranty applies only to the original purchaser. Second-hand boards are not eligible for warranty service.
