OMW Colorride CNC DKP Trucks for Electric Skateboards
🌍 International Free shipping included (except for some special countries or regions)
🚚 Delivery Time: 7-15 Business Days
✉️ Contact us if your region isn't listed at checkout.
About OMW Colorride
OMW Colorride lets you personalize your electric skateboard with coordinated CNC-machined truck colors. Choose the combination that fits your build, or select a complete OMW board with the Colorride setup already integrated.
Want a complete skateboard with this Colorride truck setup? Explore the Cavalry or Hussar Colorride editions.
Will OMW CNC Trucks Fit My Board?
How to tell whether your board can use OMW trucks: In most cases, OMW CNC trucks can be installed when the truck baseplate mounts to a flat section of the deck with no recessed pocket, and the baseplate sits on top of or underneath the deck rather than inside it. For your specific board and setup, please contact OMW before ordering.
Motor compatibility: Supports motors up to 6374.
Updated rear motor-mount interface: The 12-hole mounting pattern provides more mounting positions for different motors and motor angles.
Compatible Boards
| Brand / Model | Compatibility |
|---|---|
| OMW Cavalry | Compatible |
| OMW Hussar | Compatible |
| Evolve Diablo Bamboo Series | Compatible |
| Evolve Hadean Bamboo Series | Compatible |
| Evolve GTR Bamboo Series 2 | Compatible |
| Evolve Fusion Series | Compatible |
| Meepo Hurricane Bamboo Series | Compatible |
| Meepo ROVER | Compatible |
| Exway Flex Series — RIOT / Belt-Drive Configurations Includes Exway Flex Paragon | Compatible |
| Tynee Explorer Series | Compatible |
| Tynee Stinger — Belt-Drive Versions | Compatible |
| WowGo AT2 Plus | Compatible |
| Ownboard Bamboo Series | Compatible |
| Linnpower Viper | Compatible |
| iSinwheel V10 | Compatible |
Package List
Product: OMW Colorride CNC DKP Truck Set
| Front Truck | Rear Truck |
|---|---|
| Front truck hanger and axle × 1 | Rear truck hanger and axle × 1 |

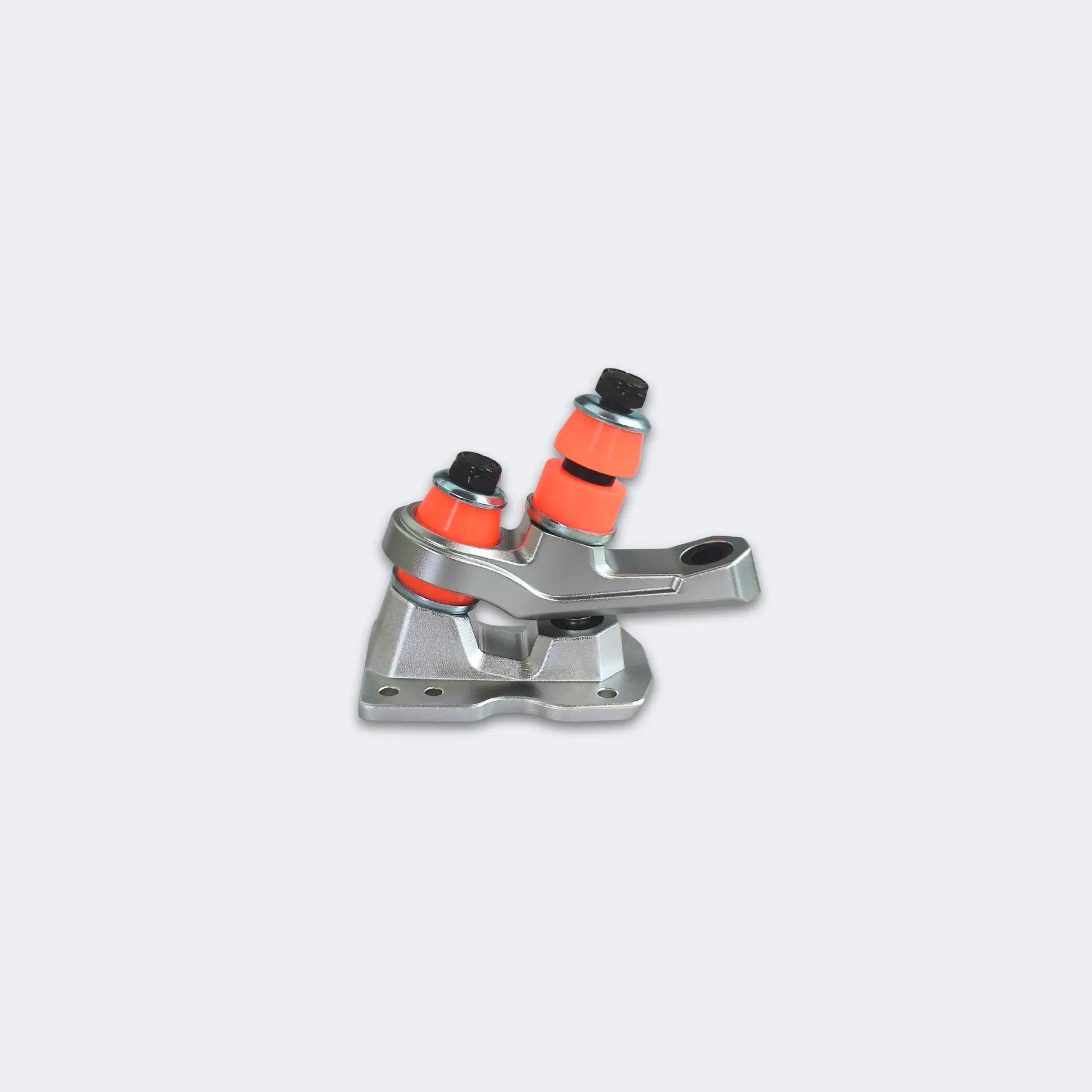

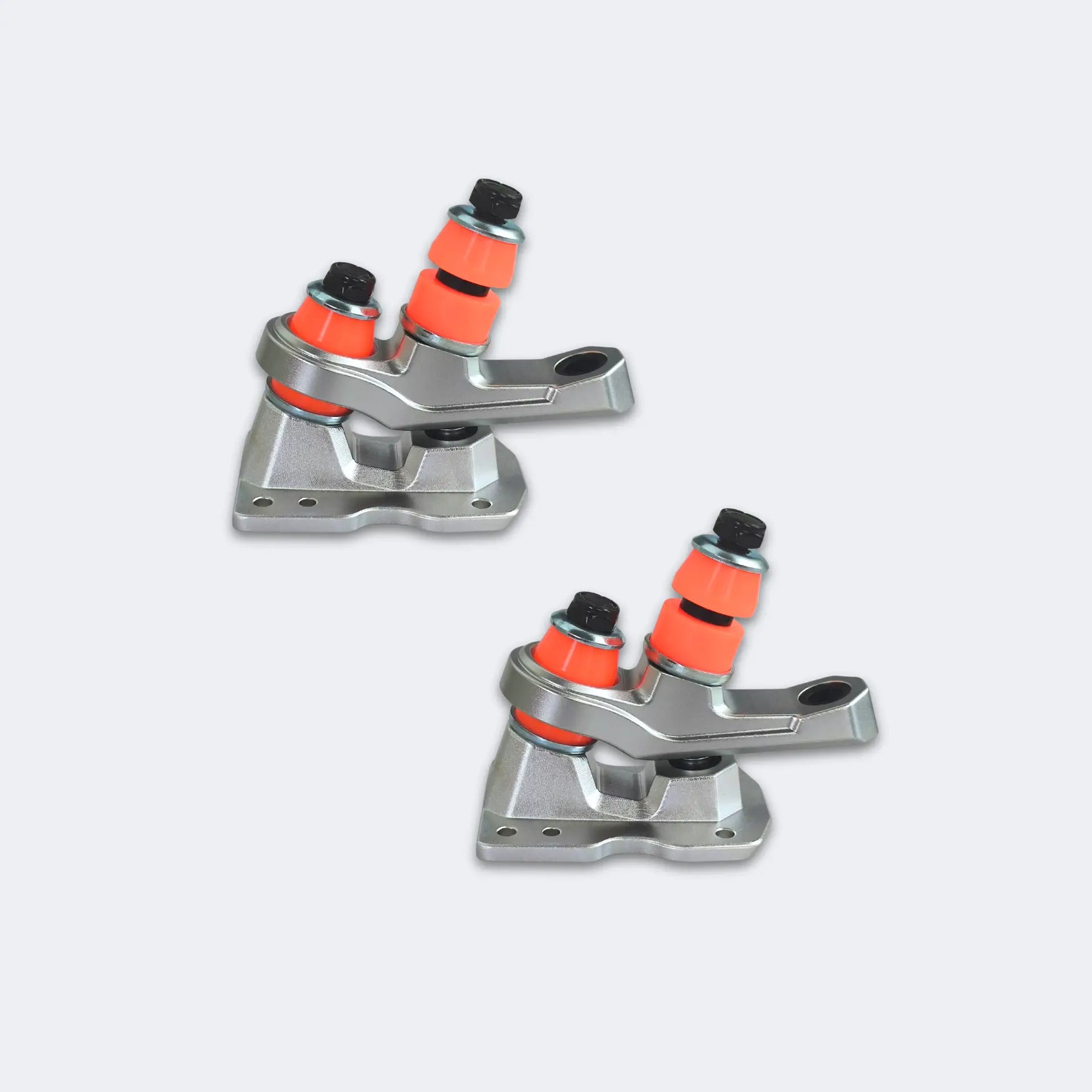

| Baseplate and middle part × 1 | Baseplate and middle part × 1 |
| 55D (100A+) bushings × 4 | 55D (100A+) bushings × 4 |
| Kingpin bolts and nuts | Kingpin bolts and nuts |
| Cup washer set | Cup washer set |
| Installation screws | Installation screws |
Motor protection bracket sold separately. View the OMW CNC Motor Protection Bracket.
CNC Structure Advantages & MAD ESK8 Review
These are the best DKP trucks I have used and I have tried almost all DKPs currently available. They turn very well at lower speeds but still have excellent high speed stability. These are different from other DKPs because you can use a double barrel with cups in all locations. The vast majority of other DKPs can’t. This allows for a wider range of tuning options. For those thinking about switching to Riptide bushings, a fat cone at the most board side position both for both front and rear works the best.
— MAD ESK8
Specifications & Mounting Interface
| Deck mounting | Standard 4-hole baseplate mounting pattern |
|---|---|
| Rear motor-mount interface | Updated 12-hole mounting pattern for more motor positions and motor-angle options |
| Maximum motor size | Up to 6374 |

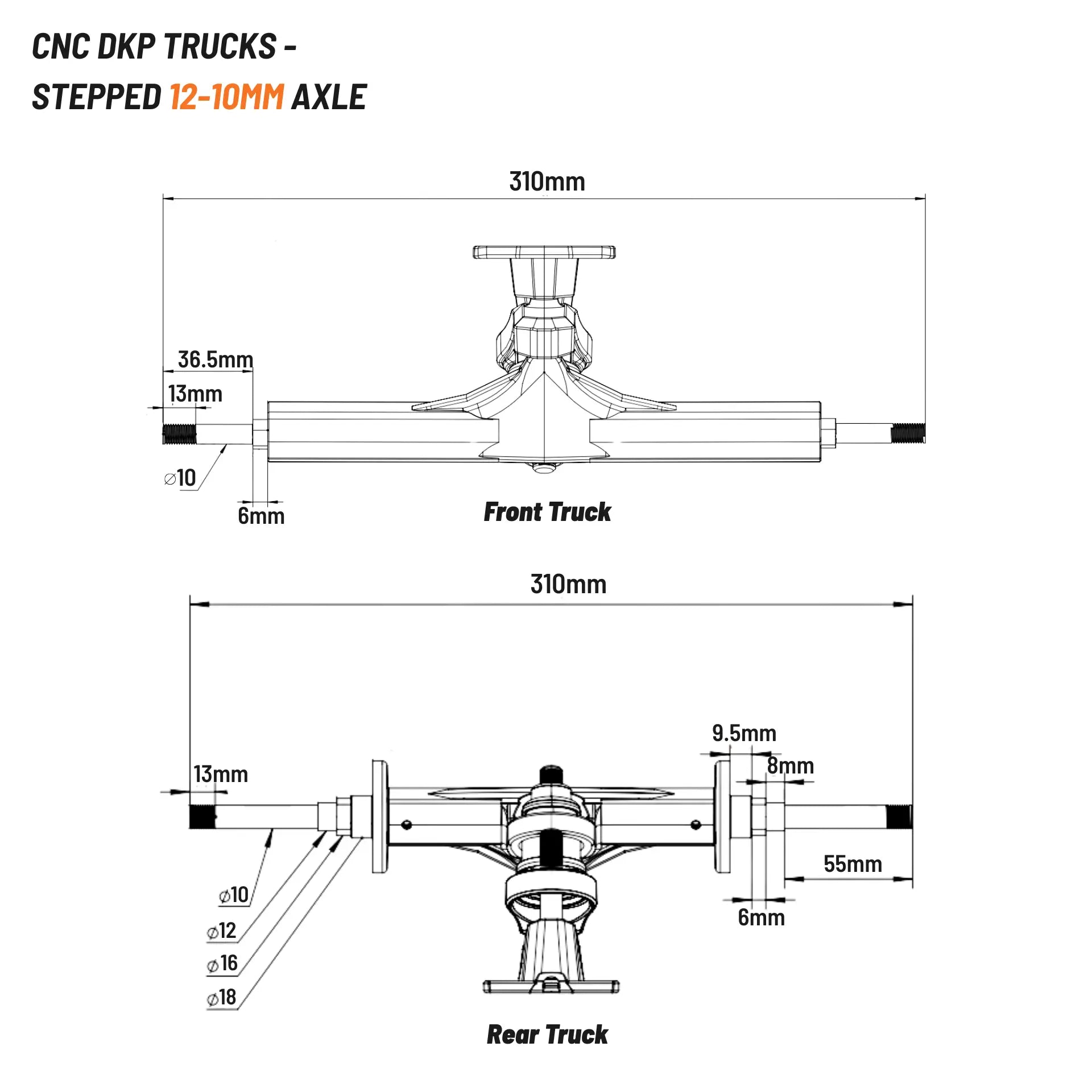

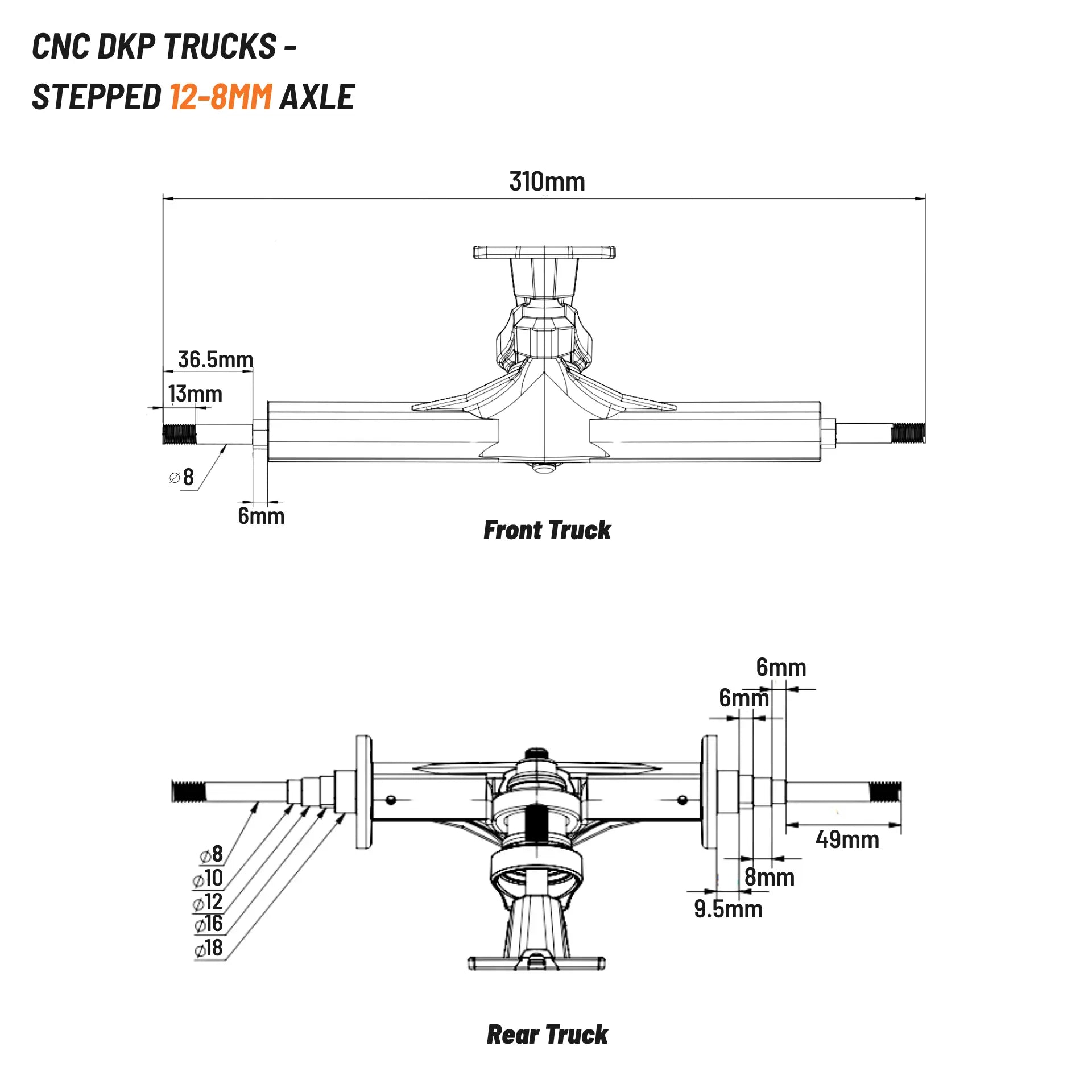

| Axle options | 8 mm or 10 mm |

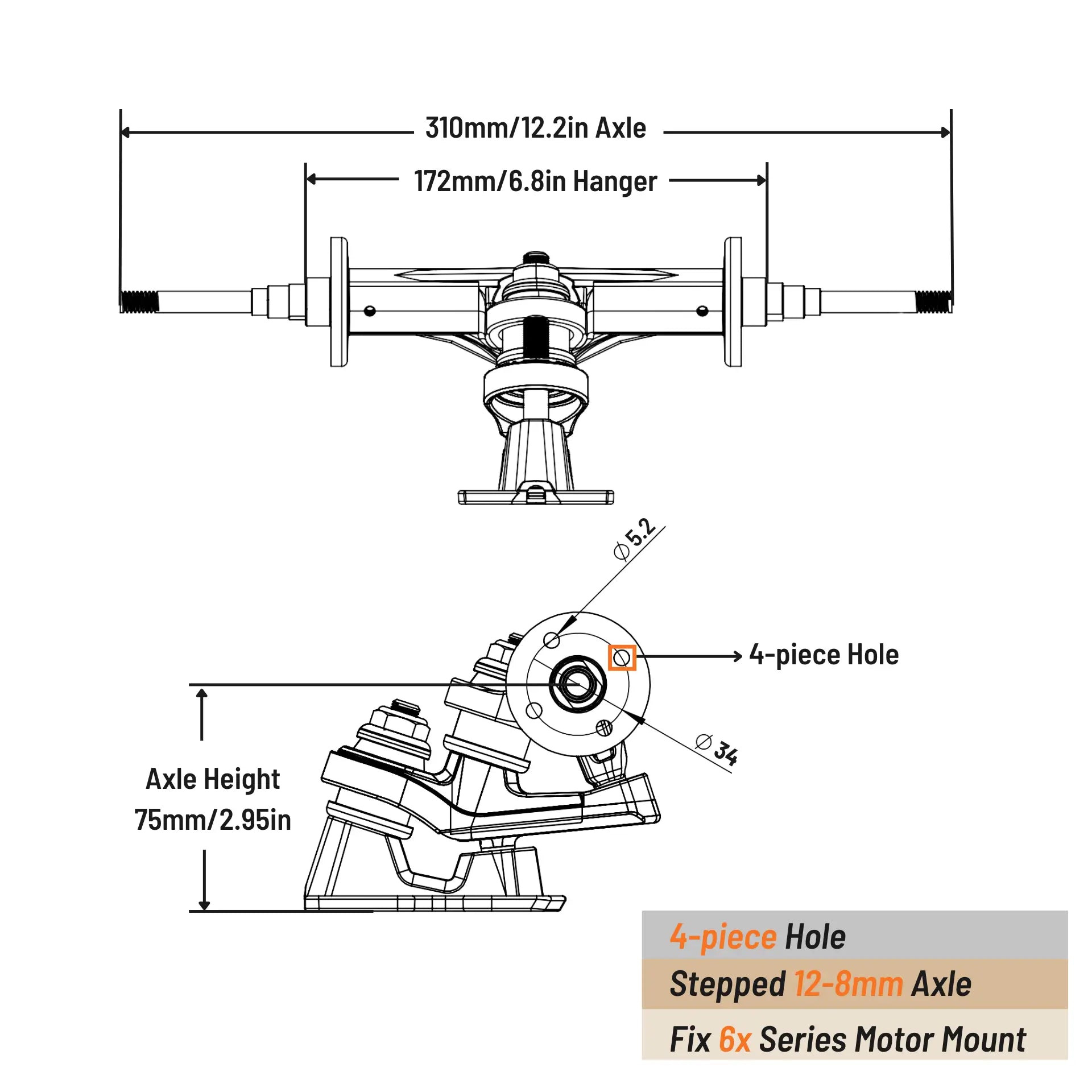

CNC DKP Truck and Motor Mount Dimensions
KAMi JUINs Tested Upgrade Builds
⭐️⭐️⭐️⭐️⭐️
